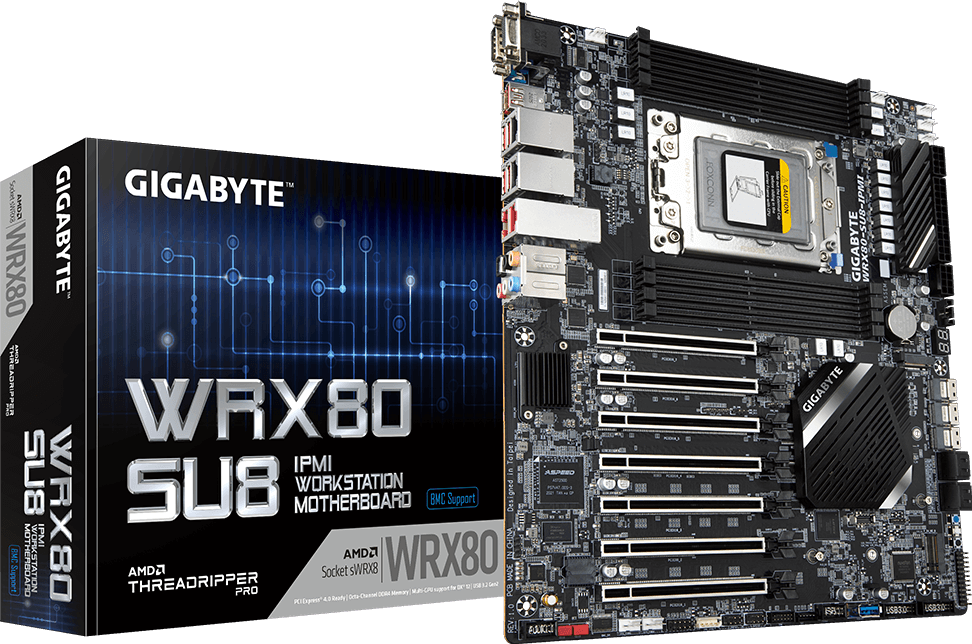

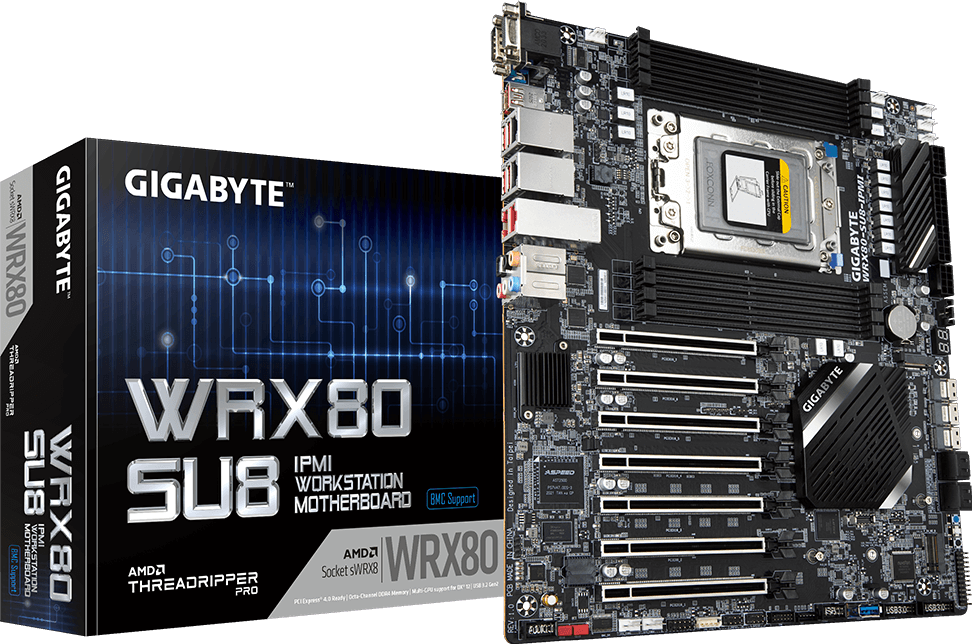

WRX80-SU8-IPMI (Rev. 1.0)

{
  "cpu": "Ryzen™ Threadripper™ PRO 3000WX (up to 64C) Single sWRX8 4094 socket; CPU TDP supports up to 280W",
  "lan": [
    "10GbE"
  ],
  "usb": "1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ header onboard, with USB3.2 Gen2 support 2 x USB 3.2 Gen 1 header onboard 1 x USB 3.2 Gen 1 vertical connector onboard 1 x USB 2.0 header on board",
  "memory": "8 x DDR4 DIMM slots supports 8 channels memory architecture (1 DIMM per channel) Support up to DDR4 3200/2933/2600 MHz Support for UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM memory modules Support system memory capacity up to 1024GB",
  "storage": "4 x SATA 6Gb/s connectors (support software RAID 0; RAID1; RAID5; RAID10) 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode) 2 x slimSAS (PCIe gen4 x4 or 4x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors",
  "dimensions": "30.5cm x 26.7cm",
  "support_os": "Windows 10 Linux",
  "h/w_monitoring": "Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.",
  "i/o_controller": "ASPEED® AST2500 BMC chip",
  "expansion_slots": "(Slot7) PCIe x16 (running at Gen4 x16) (Slot6) PCIe x16 (running at Gen4 x16) (Slot5) PCIe x16 (running at Gen4 x16) (Slot4) PCIe x16 (running at Gen4 x16) (Slot3) PCIe x16 (running at Gen4 x16) (Slot2) PCIe x16 (running at Gen4 x8) (Slot1) PCIe x16 (running at Gen4 x16)",
  "operating_properties": "Operating temperature: 10°C to 40°C Operating humidity: 8 - 80% Non-operating temperature: -40°C to 70°C Non-operating humidity: 5% - 95%",
  "back_panel_connectors": "1 x D-sub port 1 x serial port 1 x USB 3.2 Gen 2 Type-C port (red) 5 x USB 3.2 Gen 2 Type-A port (red) 2 x GbE RJ-45 ports 2 x 10GbE RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks",
  "internal_i/o_connectors": "1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V CPU power connector 1 x 8-pin ATX 12V GPU power connector 1 x CPU fan header 6 x system fan headers 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 3 x slimSAS connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 vertical connector 2 x USB 3.2 Gen 1 header 1 x USB 2.0 header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper 2 x SATA SGPIO headers 1 x BMC_VGA jumper 1 x BMC_WATCHD jumper 1 x SMB_IPMB connector 1 x PMBUS header 1 x Speaker"
}
