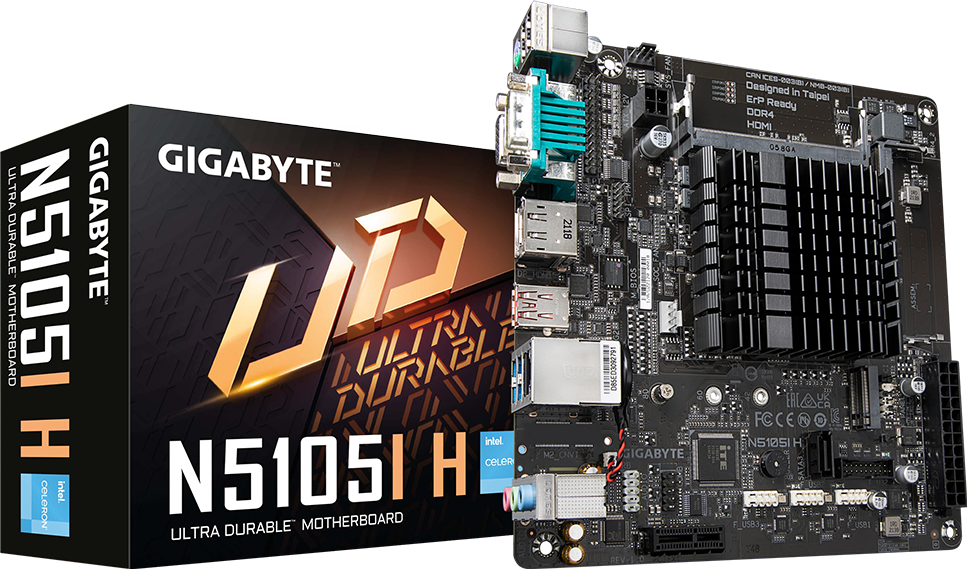

N5105I H (Rev. 1.0)

{
  "cpu": "Built in with an Intel® Quad-Core Celeron® N5105 SoC (2.0 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 4 MB L3 Cache",
  "usb": "Integrated in the SoC: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)",
  "bios": "1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0",
  "memory": "2x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory * If only one memory module is to be installed, be sure to install it in the DDR4_1 socket. Dual channel memory architecture Support for DDR4 2933/2666/2400/2133 MHz memory modules Support for non-ECC memory modules (Please refer \"Memory Support List\" for more information.)",
  "remark": "Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.",
  "storage": "Integrated in the SoC: 1 x SATA 6Gb/s connector 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)",
  "dimensions": "17.0cm x 17.0cm",
  "h/w_monitoring": "Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.",
  "i/o_controller": "iTE® I/O Controller Chip",
  "expansion_slots": "1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)",
  "unique_features": "Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.",
  "bundled_software": "Norton® Internet Security (OEM version)",
  "onboard_graphics": "Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2160@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)",
  "operating_system": "Support for Windows 11 64-bit Support for Windows 10 64-bit",
  "back_panel_connectors": "1 x PS/2 keyboard/mouse port 1 x serial port header 1 x D-Sub port 1 x HDMI 2.0 port 1 x DisplayPort 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks",
  "internal_i/o_connectors": "1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x SOC fan header 1 x system fan header 1 x SATA 6Gb/s connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x chassis intrusion header 1 x Clear CMOS jumper 1 x buzzer"
}
