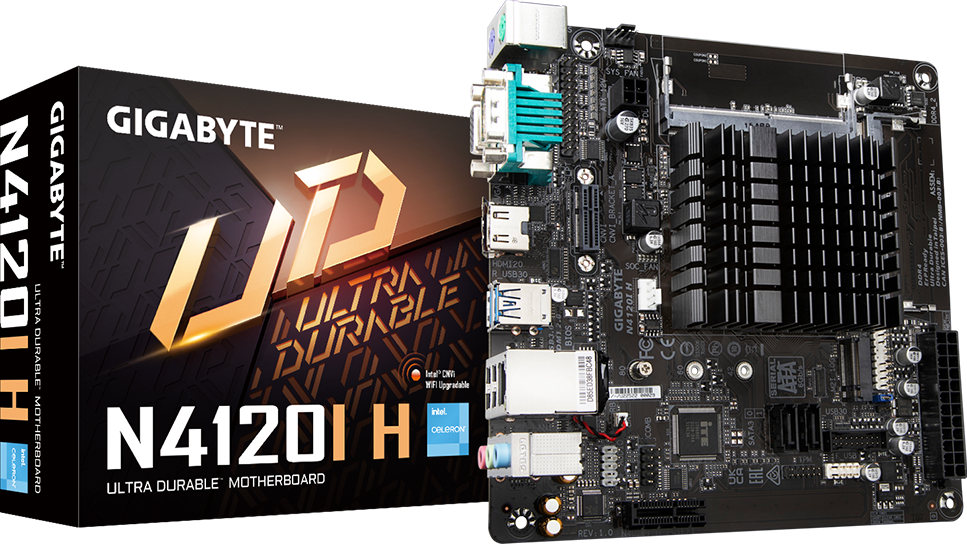

N4120I H (Rev. 1.0)

{
  "cpu": "Built in with an Intel® Quad-Core Celeron® N4120 (2.6 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 4 MB Cache",
  "usb": "Integrated in the SoC: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)",
  "bios": "1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0",
  "memory": "2 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for non-ECC memory modules (Please refer \"Memory Support List\" for more information.)",
  "remark": "Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.",
  "storage": "Integrated in the SoC: 1 x M.2 connector (Socket 3, M key, type 2280/2260/2242 SATA and PCIe 2.0 x2 SSD support) 2 x SATA 6Gb/s connectors * Refer to \"2-6 Internal Connectors,\" for the installation notices for the M.2 and SATA connectors.",
  "dimensions": "17.0cm x 17.0cm",
  "h/w_monitoring": "Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.",
  "i/o_controller": "iTE® I/O Controller Chip",
  "expansion_slots": "1 x PCI Express x1 slot, running at x1 (The PCIEX1 slot conforms to PCI Express 2.0 standard.) 1 x M.2 Socket 1 connector for the wireless communication module",
  "unique_features": "Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.",
  "bundled_software": "Norton® Internet Security (OEM version) LAN bandwidth management software",
  "onboard_graphics": "Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2.",
  "operating_system": "Support for Windows 11 64-bit Support for Windows 10 64-bit",
  "back_panel_connectors": "1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x serial port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks",
  "internal_i/o_connectors": "1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 1 x SoC fan header 1 x system fan header 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x parallel port header 1 x serial port header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper"
}
