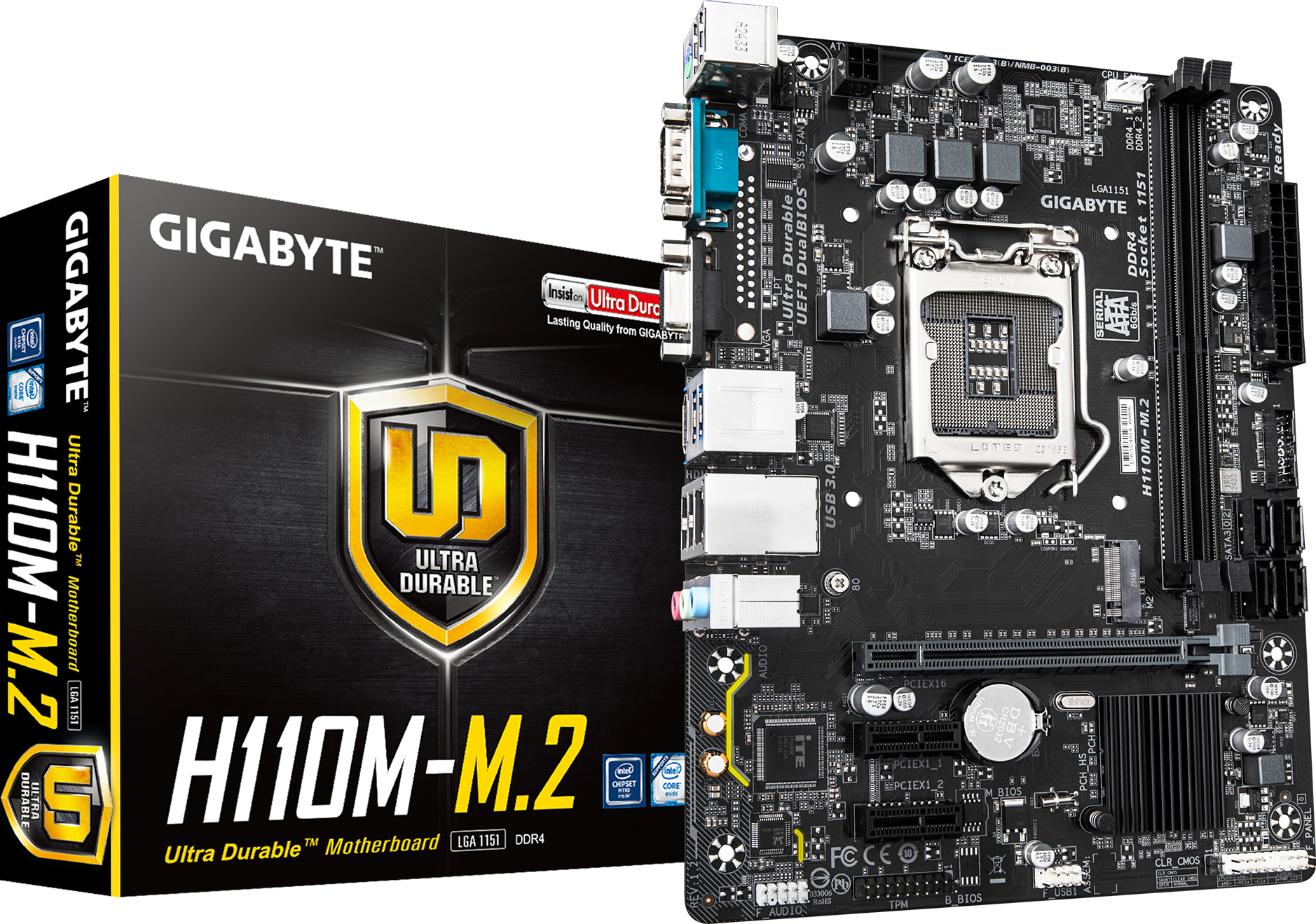

H110M-M.2 (Rev. 1.2)

{
  "cpu": "Support for 7th and 6th Generation: Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU",
  "usb": "Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)",
  "bios": "1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0",
  "memory": "2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2400 MHz or XMP memory, you must install an Intel® Core™ i7 / i5 processor of the 7th generation. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)",
  "storage": "Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe x2 SSD support) - 4 x SATA 6Gb/s connectors * Refer to \"2-7 Internal Connectors,\" for the installation notices for the M.2 and SATA connectors.",
  "dimensions": "22.6cm x 17.4cm",
  "h/w_monitoring": "Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.",
  "i/o_controller": "iTE® I/O Controller Chip",
  "expansion_slots": "1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. 2 x PCI Express x1 slots, supporting PCIe 2.0 and running at x1 (PCIEX1_1, PCIEX1_2)",
  "bundled_software": "Norton® Internet Security (OEM version) LAN bandwidth management software",
  "onboard_graphics": "Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 512 MB",
  "operating_system": "Support for Windows 10/8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the \"Windows USB Installation Tool\" from GIGABYTE's website and install it before installing Windows 7.",
  "back_panel_connectors": "1 x PS/2 keyboard/mouse port 1 x serial port 1 x D-Sub port (Note) 1 x HDMI port (Note) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.",
  "internal_i/o_connectors": "1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper"
}
