Built in with an Intel® Dual-Core Celeron® N3350 SoC (1.1 GHz ~ 2.4 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
USB
Integrated in the SoC: 2 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Shock
50G trapezoidal waveform, 11 ms duration, 170 in./Sec
Memory
1 x DDR3L SO-DIMM sockets supporting up to 8 GB of system memory Support for DDR3L 1866/1600/1333 MHz memory module (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Safety
CE/FCC Class A
Storage
Integrated in the SoC: 2 x SATA 6Gb/s connectors 1 x MSATA connector (MSATA_MPCIE2) * The MSATA_MPCIE2 shares bandwidth with the SATA3 1 connector. The SATA3 1 becomes unavailable when a device is installed in the MSATA_MPCIE2 connector.
Mounting
VESA 75 Mounting hole
Dimension
173 x 135 x 36.9 mm

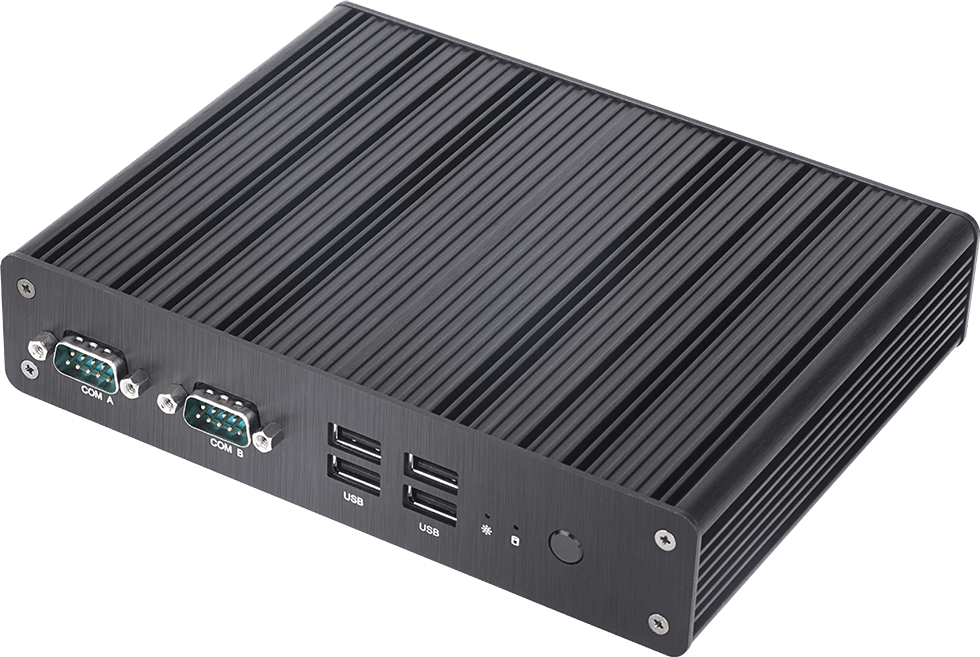

Front I/O
COM Port x 2, USB 2.0 x 4
Dimensions
14.6cm x 10.2cm
Net Weight
1.2Kg
Gross Weight
1.5 Kg
Anti-vibration
3 Grms/ 5 ~ 500Hz/ operation – mSATA 1 Grms
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
iTE® I/O Controller Chip
Expansion Slots
1 x half size Mini PCIe slot (MPCIE1) (The Mini PCIe slot conforms to PCI Express 2.0 standard.) 1 x SIM Socket
Unique Features
Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz 1 x LVDS, supporting a maximum resolution of 1920x1200@60 Hz Maximum shared memory of 512 MB
Operating System
Support for Windows 10 64-bit
Back Panel Connectors
1 x HDMI port 1 x D-Sub port 2 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 1 x audio jack (headphone and microphone combo jack)
Internal I/O Connectors
1 x DC-In power connector 1 x system fan header 2 x SATA 6Gb/s connectors 2 x SATA power connectors 1 x front panel header 1 x battery cable header 2 x USB 2.0/1.1 headers 4 x serial port headers 4 x serial port power select jumpers 1 x speaker header 1 x GPIO power selection jumper 1 x GPIO status configuration jumper 1 x LVDS header 1 x LVDS drive voltage jumper 1 x flat panel display header 1 x flat panel display switch header 1 x backlight switch header 1 x volume control header 1 x buzzer header 1 x LPT/GPIO header 1 x LPT configuration jumper 1 x I2C 1 x SMBUS 1 x BIOS Select jumper 1 x Clear CMOS jumper 1 x chassis intrusion header
