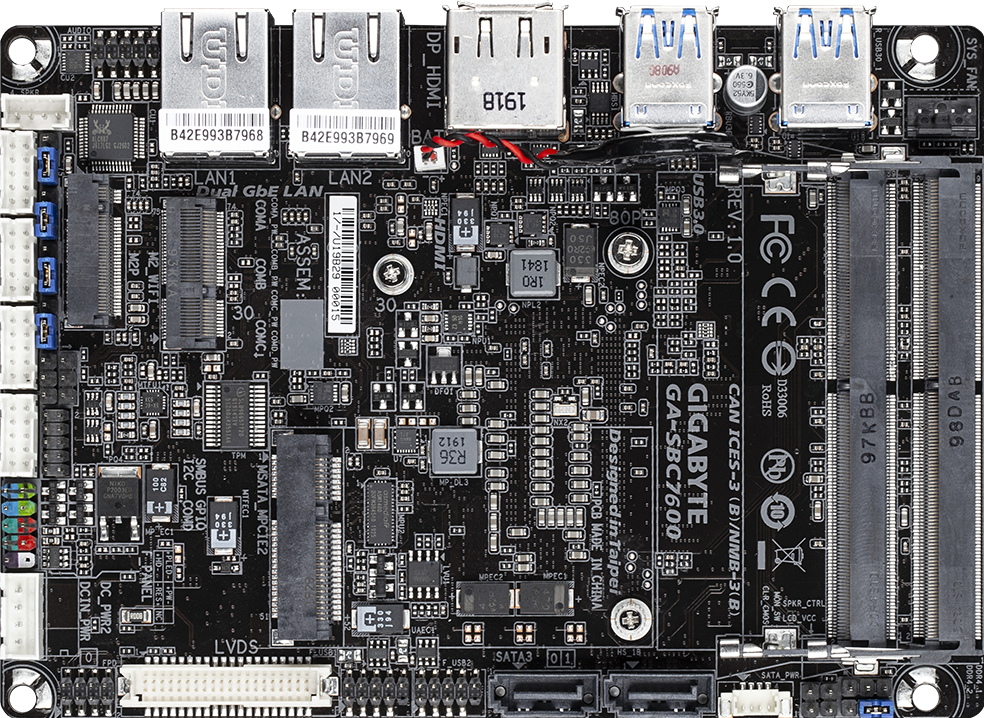

GA-SBC7600 (Rev. 1.0)

{
  "cpu": "Built-in Intel® Core I Series i7-7600U Quad core MCP 15W processor * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.",
  "usb": "Integrated in the SoC: 4 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers",
  "bios": "1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0",
  "memory": "2 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory Support for DDR4 2133 MHz memory module (Please refer \"Memory Support List\" for more information.)",
  "remark": "Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.",
  "storage": "Integrated in the SoC: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe x1 SSD support) (M2) 2 x SATA 6Gb/s connector 1 x MSATA connector (MSATA_MPCIE)",
  "dimensions": "14.6cm x 10.2cm",
  "h/w_monitoring": "System voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.",
  "i/o_controller": "Nuvoton NCT6116D",
  "expansion_slots": "1 x M.2 Socket 1 connector for an Wifi module 1 x full size Mini PCIe connector (MSATA_MPCIE) * The MINI_PCIE connector can also be used as an MSATA connector. (The Mini PCIe connector conforms to PCI Express 2.0 standard.)",
  "unique_features": "Support for Xpress Install Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications",
  "bundled_software": "Norton® Internet Security (OEM version)",
  "onboard_graphics": "1 x Display port, supporting a maximum resolution of 3840x2160@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz 1 x LVDS, supporting a maximum resolution of 1920x1200@60 Hz",
  "operating_system": "Support for Windows 10 64-bit",
  "back_panel_connectors": "1 x HDMI port 1 x Display port 4 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 1 x audio jacks (Line In, Mic In)",
  "operating_temperature": "0°C to +60°C",
  "internal_i/o_connectors": "1 x DC-In power connector 1 x system fan header 2 x SATA 6Gb/s connector 1 x M.2 Socket 3 connector 1 x SATA power connector 1 x front panel header 4 x USB 2.0/1.1 headers 4 x serial port headers 4 x serial port power select jumpers 1 x GPIO header 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x flat panel display header (FPD) 1 x flat panel display switch header (MON_SW) 1 x speaker header (SPEAKER) 1 x speaker control header (SPKR_CTRL) 1 x Clear CMOS jumper 1 x I2C jumper 1 x SMBUS jumper"
}
