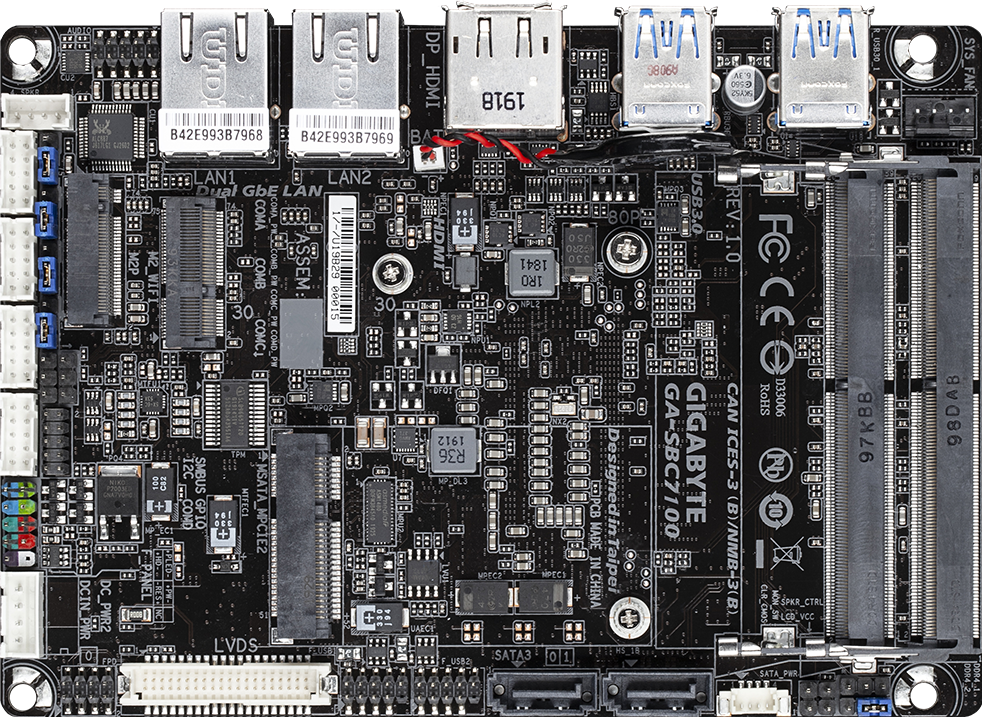

Built-in Intel® Core I Series i3-7100U Quad core MCP 15W processor * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
USB
Integrated in the SoC: 4 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory Support for DDR4 2133 MHz memory module (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Integrated in the SoC: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe x1 SSD support) (M2) 2 x SATA 6Gb/s connector 1 x MSATA connector (MSATA_MPCIE)
Dimensions
14.6cm x 10.2cm
H/W Monitoring
System voltage detection Temperature detection Fan speed detection Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
Nuvoton NCT6116D
Expansion Slots
1 x M.2 Socket 1 connector for an Wifi module 1 x full size Mini PCIe connector (MSATA_MPCIE) * The MINI_PCIE connector can also be used as an MSATA connector. (The Mini PCIe connector conforms to PCI Express 2.0 standard.)
Unique Features
Support for Xpress Install Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
1 x Display port, supporting a maximum resolution of 3840x2160@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz 1 x LVDS, supporting a maximum resolution of 1920x1200@60 Hz
Operating System
Support for Windows 10 64-bit
Back Panel Connectors
1 x HDMI port 1 x Display port 4 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 1 x audio jacks (Line In, Mic In)
Operating Temperature
0°C to +60°C
Internal I/O Connectors
1 x DC-In power connector 1 x system fan header 2 x SATA 6Gb/s connector 1 x M.2 Socket 3 connector 1 x SATA power connector 1 x front panel header 4 x USB 2.0/1.1 headers 4 x serial port headers 4 x serial port power select jumpers 1 x GPIO header 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x flat panel display header (FPD) 1 x flat panel display switch header (MON_SW) 1 x speaker header (SPEAKER) 1 x speaker control header (SPKR_CTRL) 1 x Clear CMOS jumper 1 x I2C jumper 1 x SMBUS jumper
