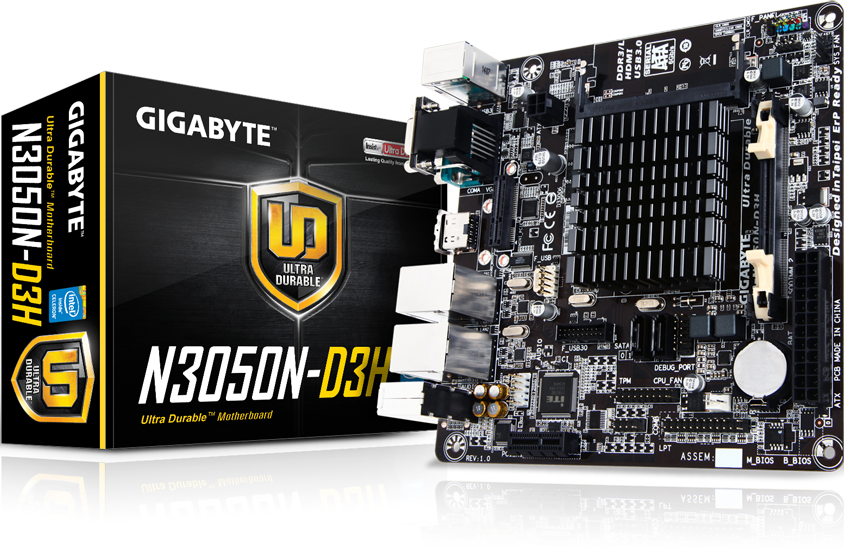

Built in with an Intel® Dual-Core Celeron® N3050 SoC (1.6 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
USB
Integrated in the SoC: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers) 2 x GL850S chips: 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
BIOS
1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x DDR3/L SO-DIMM sockets supporting up to 8 GB of system memory * If only one DDR3/L memory module is to be installed, be sure to install it in the SODIMM_1 socket. Dual channel memory architecture Support for DDR3/L 1333/1600 MHz memory modules Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Integrated in the SoC: 2 x SATA 6Gb/s connectors
Dimensions
17.0cm x 17.0cm
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
iTE® I/O Controller Chip
Expansion Slots
1 x PCI Express x1 slot 1 x Mini PCI Express x1 slot (The Mini PCI Express slot conforms to PCI Express 2.0 standard.) (For Mini-PCIE card/not mSATA card)
Unique Features
Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
Operating System
Support for Windows 10 32-bit/64-bit Support for Windows 8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Back Panel Connectors
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x serial port 2 x USB 3.0/2.0 port 4 x USB 2.0/1.1 ports 2 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x SATA 6Gb/s connectors 1 x USB 3.0/2.0 headers 1 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
