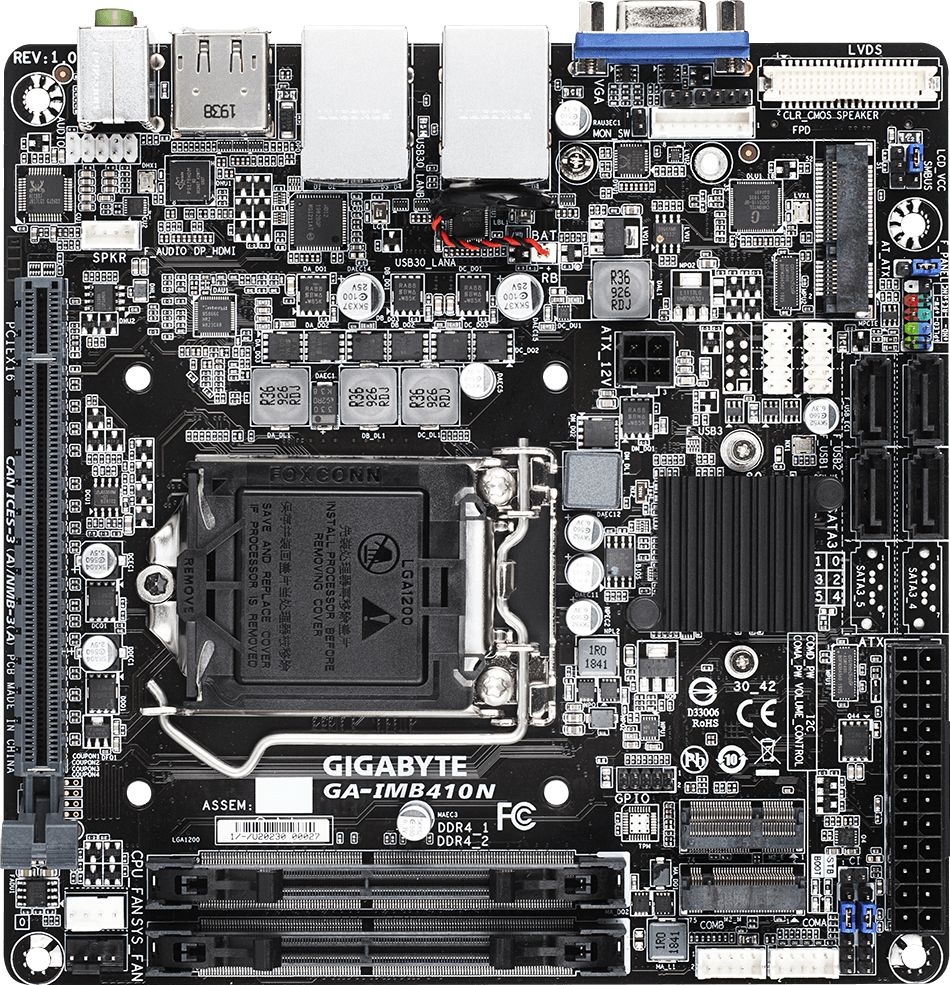

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package up to 65W L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Tpm
Infineon chip, supporting TPM 2.0 (Optional)
USB
Chipset: 4 x USB 3.0/2.0 ports on the back panel 2 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory Support for DDR4 2666/2933 MHz memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Chipset: 1 x M.2 connector on the top of the motherboard (Socket 3, M key, type 2242/2280 SATA and PCIe x1 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Dimensions
17.0cm x 17.0cm
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
ＮuvoTon NCT6116D
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for PCIe wireless module 1 x full size Mini PCIe connector (MSATA_PCIE) * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable. * The MSATA_PCIE connector can also be used as an MSATA connector. (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
Unique Features
Support for @BIOS Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Support for up to 2 displays at the same time Maximum shared memory of 1 GB
Operating System
Support for Windows 10 64-bit /Linux
Back Panel Connectors
4 x USB 3.0/2.0 ports 2 x RJ-45 ports 1 x D-Sub port 1x HDMI2.0 port (Note) 1 x DisplayPort 2 x audio jacks
Operating Temperature
0°C to +60°C
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector on the back of the motherboard 4 x SATA 6Gb/s connectors 1 x MSATA connector 1 x USIM connector on the back of the motherboard 1 x front panel header 1 x front panel audio header 1 x battery power cable connector 1 x USB 2.0/1.1 header 2 x serial port power select jumpers 1 x AT/ATX mode switch jumper (AT_ATX) 1 x GPIO header 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x backlight switch header (BL_SW) 1 x flat panel display switch header (MON_SW) 1 x flat panel display header (FPD) 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x I2C jumper 1 x SMBUS jumper
