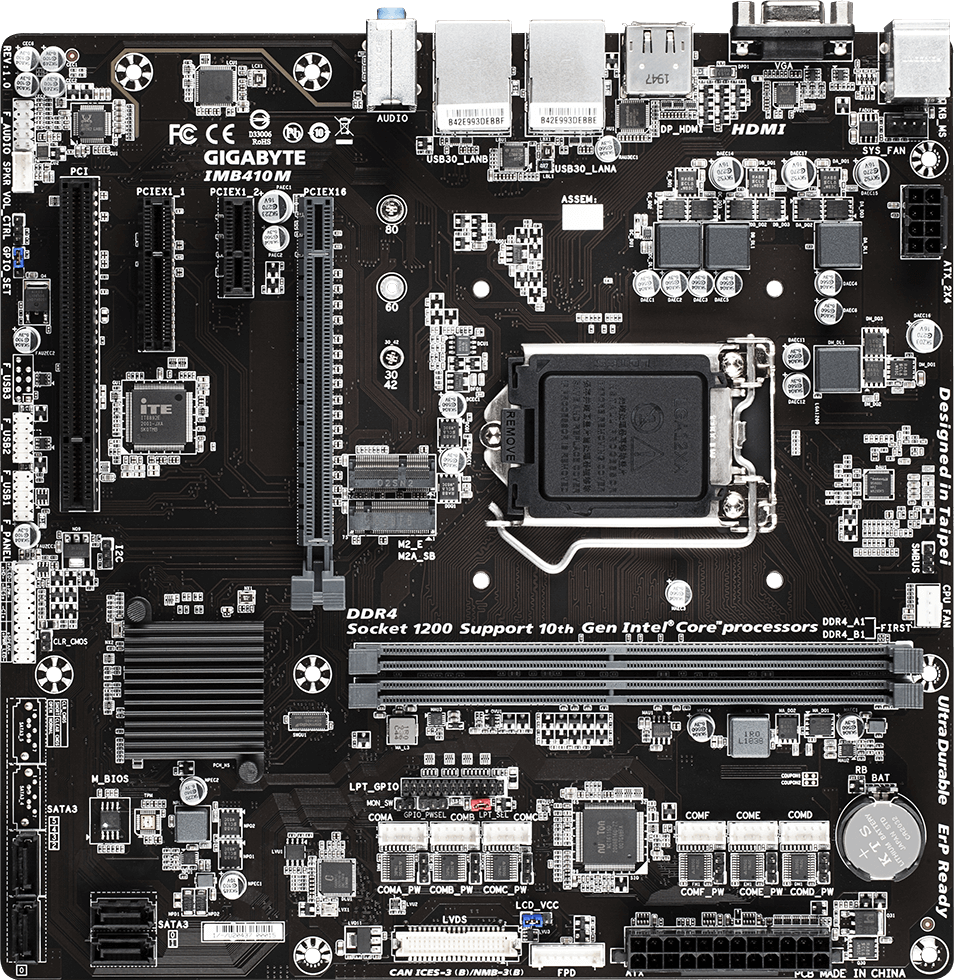

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package up to 65W L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Tpm
Infineon chip, supporting TPM 2.0 (Optional)
USB
Chipset: 4 x USB 3.0/2.0 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Chipset: 1 x M.2 connector on the top of the motherboard (Socket 3, M key, type 2242/60/2280 SATA and PCIe x1 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Dimensions
24.4cm x 24.4cm
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
ＮuvoTon NCT6116D
Expansion Slots
1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_E)
Unique Features
Support for @BIOS Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 3840 x 2160@30Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x Dual channel LVDS co-lay with eDP (Default is LVDS) * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Support for up to 2 displays at the same time Maximum shared memory of 512 MB
Operating System
Support for Windows 10 64-bit /Linux
Back Panel Connectors
4 x USB 3.0/2.0 ports 2 x RJ-45 ports 1 x D-Sub port 1x HDMI1.4 port (Note) 1 x DisplayPort 1 x audio jacks(line in/line out/Mic-in)
Operating Temperature
0°C to +60°C
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 header 6 x serial port power select jumpers 1 x GPIO header(LPT) 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x backlight switch header (BL_SW) 1 x flat panel display switch header (MON_SW) 1 x flat panel display header (FPD) 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x I2C jumper 1 x SMBUS jumper
