Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Tpm
Infineon chip, supporting TPM 2.0 Note: This feature is optional due to different regional policy.
USB
Chipset: 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory Support for DDR4 2133 MHz memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) on the back of the motherboard 2 x SATA 6Gb/s connectors
Dimension
205 x 205 x 45 mm

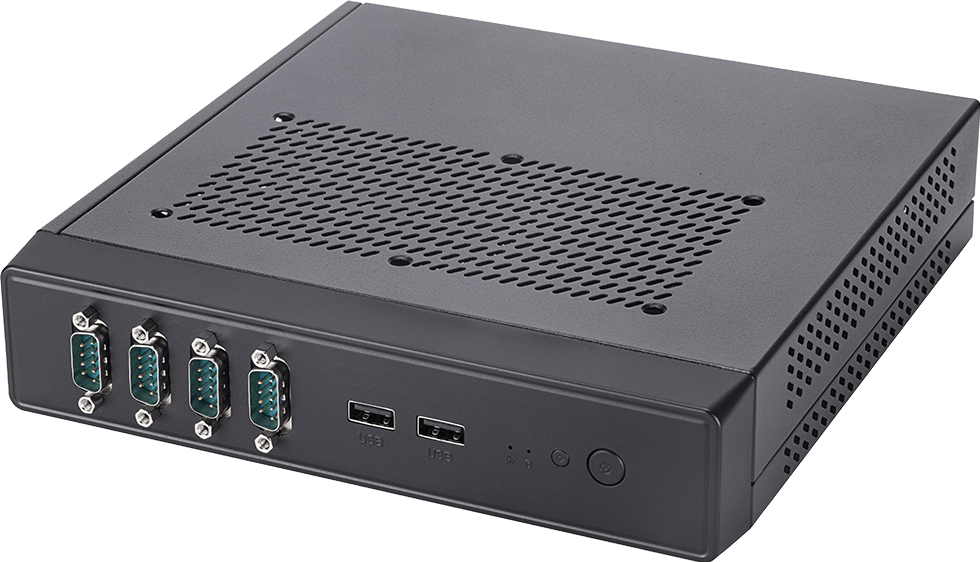

Front I/O
COM Port x 4, USB 2.0 x 2
Dimensions
17.0cm x 17.0cm
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan fail warning CPU/System fan speed detection CPU/System overheating warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
iTE® I/O Controller Chip
Expansion Slots
1 x PCI Express x4 slot (The PCI Express x4 slot conforms to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI) 1 x full size Mini PCIe connector (MSATA_PCIE) * The MSATA_PCIE connector can also be used as an MSATA connector. (The Mini PCIe connector conforms to PCI Express 2.0 standard.)
Unique Features
Support for @BIOS Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 1 GB
Operating System
Support for Windows 10 64-bit
Back Panel Connectors
1 x DC-In power connector 1 x HDMI port 1 x DisplayPort 2 x USB 3.0 port 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x audio jacks (Line Out, Mic In)
Internal I/O Connectors
1 x 4-pin ATX 12V power connectors 1 x AT/ATX mode switch jumper 1 x CPU fan header 1 x system fan headers 1 x M.2 Socket 3 connector on the back of the motherboard 2 x SATA 6Gb/s connectors 1 x MSATA connector 1 x USIM connector on the back of the motherboard 1 x SATA power connector 1 x front panel header 1 x front panel audio header 1 x battery power cable connector 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 4 x serial port headers 4 x serial port power select jumpers 1 x D-Sub port header 1 x GPIO header 1 x LVDS header 1 x LVDS drive voltage jumper (LCD_VCC) 1 x flat panel display header (FPD) 1 x flat panel display power select jumper (FPD_PWR) 1 x flat panel display switch header (MON_SW) 1 x backlight switch header (BL_SW) 1 x speaker header (SPKR) 1 x buzzer header (SPEAKER) 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x I2C 1 x SMBUS
