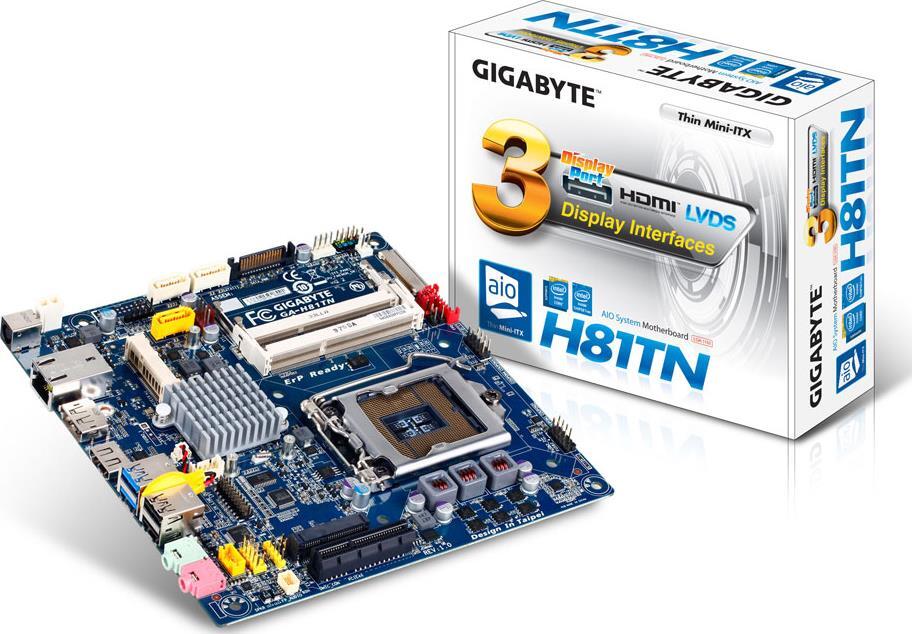

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package (Supports up to 84W) L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
USB
Chipset: 2 USB 3.0/2.0 ports; 7 USB 2.0/1.1 ports * USB 2.0/1.1 ports available through the internal USB headers (Card reader/Touch panel/webcam and other devices)
BIOS
1 x 64 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Power
GIGABYTE recommends 180W power adapters for processors above 84W TDP. Processors with a TDP lower than 84W, may use 150W power adapters. Connector Dimension: 7.4 x 5.1mm, 150W = 19V / 7.89A Connector Dimension: 7.4 x 5.1mm, 180W = 19V / 9.47A
Memory
2 x 1.5V DDR3 SO-DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Chipset: 2 x SATA 6Gb/s connectors (SATAIII 0/1); 1 x SATA 3Gb/s device (SATAII 2) 1 x mSATA 3Gb/s connector
Dimensions
17.0cm x 17.0cm
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU fan speed control * For 4-pin CPU coolers only * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
I/O Controller
Nuvoton I/O Controller Chip
Expansion Slots
1 x PCI Express x4 slot (Supports 25W only) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) 1 x Mini PCI Express x1 slot
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support: 1 x HDMI 1.4a port, supporting a maximum resolution of 4096x2160 1 x DisplayPort, supporting a maximum resolution of 2560x1600 1 x LVDS connector
Operating System
Support for Windows 8/7
Back Panel Connectors
1 x HDMI port 1 x DisplayPort 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks (Line Out, Mic In) 1 x DC-In power connector
Internal I/O Connectors
1 x 2-pin power connector 1 x CPU fan header 1 x system fan header 2 x SATA 6Gb/s connectors 1 x SATA 3Gb/s connector 1 x mSATA connector 1 x SATA power connector 5 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x front panel header 1 x front panel audio header 1 x digital microphone header 1 x AIO speaker header 1 x LVDS connector 1 x LVDS drive voltage header 1 x flat panel display power header (both panel and backlight inverter) 1 x flat panel display power connector 1 x backlight switch header 1 x flat panel display switch header 1 x WIFI activity indicator LED header 1 x Clear CMOS jumper
