Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
USB
Chipset: 4 x USB 3.0/2.0 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers
BIOS
2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Chipset: 2 x SATA 6Gb/s connectors 1 x MSATA connector (MSATA_MPCIE2)
Dimension
205 x 205 x 45 mm

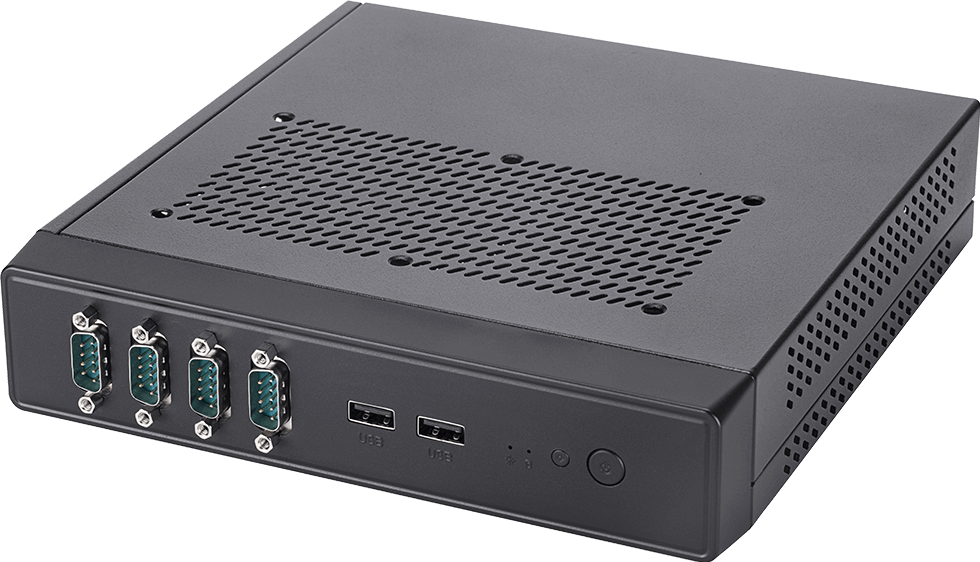

Front I/O
COM Port x 4, USB 2.0 x 2
Dimensions
17.0cm x 17.0cm
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan fail warning CPU/System fan speed detection CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller
iTE® I/O Controller Chip
Expansion Slots
1 x PCI Express x4 slot (The PCI Express x4 slot conforms to PCI Express 3.0 standard.) 1 x full size Mini PCIe slot (MSATA_MPCIE2) * The MSATA_MPCIE2 slot can also be used as an MSATA connector. 1 x half size Mini PCIe slot (MPCIE1) (The Mini PCIe slot conforms to PCI Express 2.0 standard.)
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 1024 MB
Operating System
Windows® 10 64-bit (for 7th Generation Intel® Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Back Panel Connectors
1 x DC In power connector 1 x HDMI port 1 x DisplayPort 4 x USB 3.0/2.0 ports 2 x RJ-45 ports 2 x audio jacks (Line Out, Mic In)
Operating Temperature
0°C to +50°C
Internal I/O Connectors
1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x SATA 6Gb/s connectors 1 x MSATA connector (MSATA_MPCIE2) 1 x SATA power connector 1 x front panel header 1 x front panel audio header 1 x battery cable header 2 x USB 2.0/1.1 headers 4 x serial port headers 4 x serial port power select jumpers 1 x D-Sub header 1 x digital microphone header 1 x GPIO header 1 x LVDS header 1 x LVDS drive voltage jumper 1 x flat panel display header 1 x flat panel display power jumper 1 x flat panel display switch header 1 x backlight switch header 1 x speaker header 1 x buzzer header 1 x Clear CMOS jumper 1 x chassis intrusion header
