Support for Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (up to 65W) * This motherboard supports 12V/19V~24V power adapters. When a 35W~51W CPU is installed, it is recommended that a 90~95W power adapter be used. When a 65W CPU is installed, it is recommended that a 90W~120W power adapter be used. L3 cache varies with CPU
Vesa
VESA Screws : included Supports 100 x 100 mm
Memory
2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. 2133 MHz Max. 32GB
Storage
Supports 2 x 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
Dimension
193(L) mm x 153(W) mm x 67(H) mm

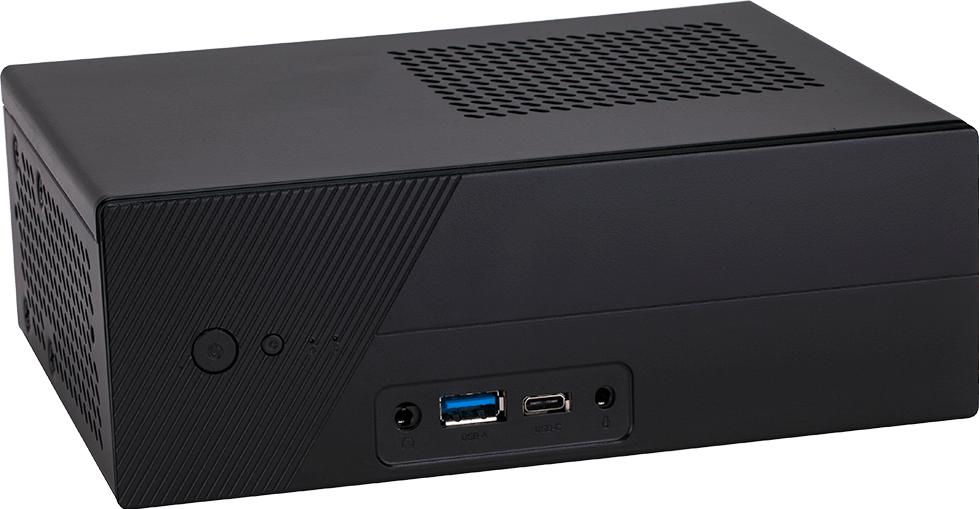

Front I/O
1 x USB3.0 Type C 1 x USB 3.0 1 x Audio in/out, 1 x Mic in
Wifi Card
Optional( Via M.2 Interface)
Support Os
Win10 64bit/Win7 64bit
Environment
System Environment Operating Temperature: 0°C to +50°C System Storage Temperature: -20°C to +60°C
Power Adapter
90W/19V/4.74A Power Adapter Note : Suggest select 90~120W Power adapter for DC in 12~19/24V
Expansion Slots
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) 1 x M.2 Type 2280 storage devices support (SATA mode)
Motherboard Size
140 x 147 mm
Onboard Graphics
Intel® HD Graphics
Operating System
Win10 64bit/Win7 64bit
Back Panel Connectors
1 x HDMI 1 x Display 1 x VGA 2 x USB 3.0 2 x USB 2.0 1 x RJ45 1 x DC-In 1 x RS232 1 x Kensington lock slot
