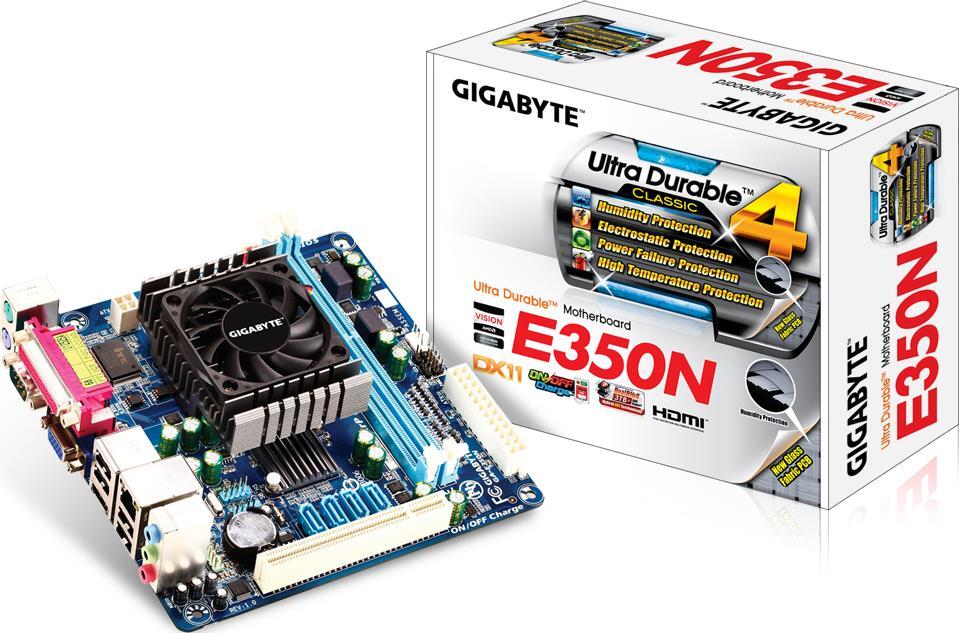

GA-E350N (Rev. 3.0)

Specifications

Vendor: gigabyte
Chipset: AMD A45 FCH
Form factor: Mini-ITX
Max memory: 16 GB
SATA ports: 4

Full vendor specifications · 17

Apu: Built in with an AMD E-350D Dual-Core processor Built in with an AMD Radeon™ HD 6310 (DirectX 11) graphics core
USB: Chipset: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS

2 x 32 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Note

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. (Note 2) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install. (Note 4) Available functions in EasyTune may differ by motherboard model.

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1) Single channel memory architecture Support for DDR3 1333 (O.C.)/1066 MHz memory modules (Please refer "CPU Support List" for more information.)

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

H/W Monitoring

System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control (Note 3)

Unique Features

Support for @BIOS Support for Q-Flash Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 4) Support for Smart Recovery Support for Auto Green Support for ON/OFF Charge Support for Q-Share

Onboard Graphics

Integrated in the APU: 1 x D-Sub port 1 x HDMI port, supporting a maximum resolution of 1920x1200

Back Panel Connectors

1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone)

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x power LED header 1 x Clear CMOS jumper
