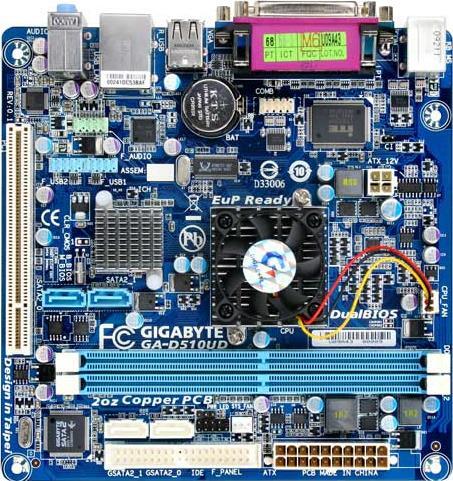

GA-D510UD (Rev. 1.0)

{
  "cpu": "Built in with an Intel® Dual-core Atom™ D510 processor (1.66 GHz) (Note 1) 1M L2 cache",
  "usb": "Chipset Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)",
  "bios": "2 x 4 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b",
  "note": "(Note 1) Do not disassemble the onboard CPU/chipset and the heatsinks/fan by yourself to avoid damage to these components. (Note 2) Due to Windows 32-bit operating system limitation, when the 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. (Note 3) To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. (Note 4) Available functions in EasyTune may differ by motherboard model.",
  "memory": "2 x 1.8V DDR2 DIMM socket supporting up to 4 GB of system memory (Note2) Support for DDR2 800/ 667 MHz memory module (Go to GIGABYTE's website for the latest memory support list.)",
  "remark": "Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.",
  "storage": "Chipset: 2 x SATA 3Gb/s connectors (SATA2_0, SATA2_1) supporting up to 2 SATA 3Gb/s devices GIGABYTE SATA2 chip: 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, and JBOD",
  "dimensions": "17.0cm x 17.0cm",
  "h/w_monitoring": "System voltage detection CPU temperature detection CPU /System fan speed detection CPU fan speed control",
  "i/o_controller": "iTE IT8720 chip",
  "expansion_slots": "1 x PCI slot",
  "unique_features": "Support for @BIOS Support for Download Center Support for Q-Flash Support for EasyTune (Note 4) Support for Xpress Install Support for Xpress Recovery2 Support for SMART Recovery Support for Auto Green Support for Q-Share",
  "bundled_software": "Norton Internet Security (OEM version)",
  "operating_system": "Support for Microsoft® Windows® 7/Vista/XP",
  "back_panel_connectors": "1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone)",
  "internal_i/o_connectors": "1 x 20-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x IDE connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x power LED header"
}
