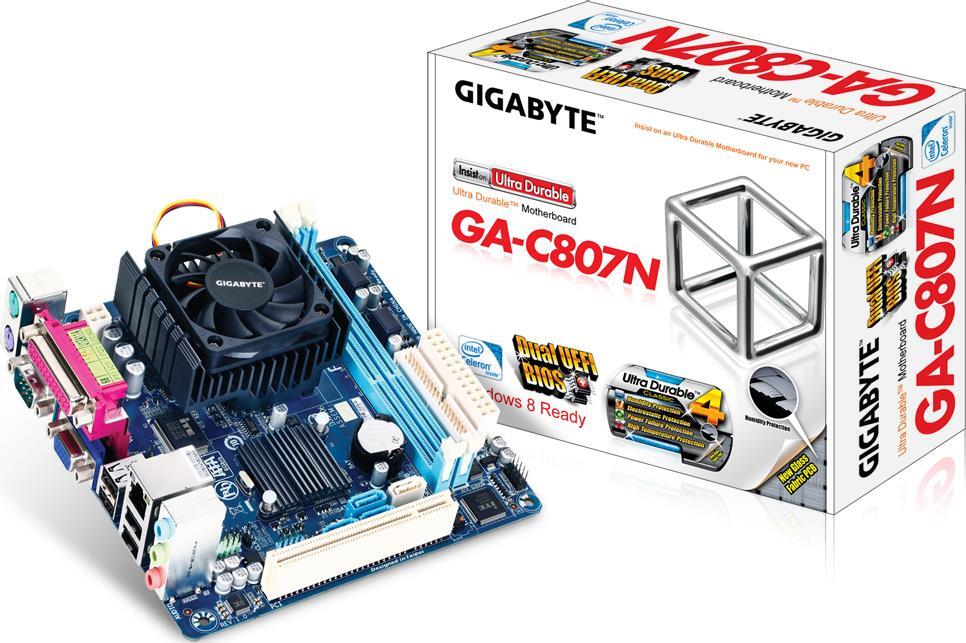

Built in with an Intel® Single-core Celeron® 807 processor (1.5 GHz) * Do not disassemble the onboard CPU/chipset and the heatsinks/fan by yourself to avoid damage to these components. 1.5MB L3 cache
USB
Chipset Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
BIOS
2 x 32 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1333/1066 MHz memory modules (Please refer "Memory Support List" for more information.)
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Storage
Chipset: 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device 3 x SATA 3Gb/s connectors (SATA2 1/2/3) supporting up to 3 SATA 3Gb/s devices
Dimensions
17.0cm x 17.0cm
H/W Monitoring
System voltage detection CPU/System temperature detection CPU/System fan speed detection System fan speed control
I/O Controller
iTE I/O Controller Chip
Expansion Slots
1 x PCI slot
Unique Features
Support for @BIOS Support for Q-Flash Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune 6 * Available functions in EasyTune may differ by motherboard model. Support for Smart Recovery 2 Support for Auto Green Support for ON/OFF Charge
Bundled Software
Norton Internet Security (OEM version) Intel® Smart Connect Technology
Onboard Graphics
Integrated Graphics Processor: 1 x D-Sub port
Operating System
Support for Microsoft® Windows® 8/7/Vista/XP
Back Panel Connectors
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x parallel port 1 x serial port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x IDE connector 1 x SATA 6Gb/s connector 3 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x serial port header 1 x chassis intrusion header
