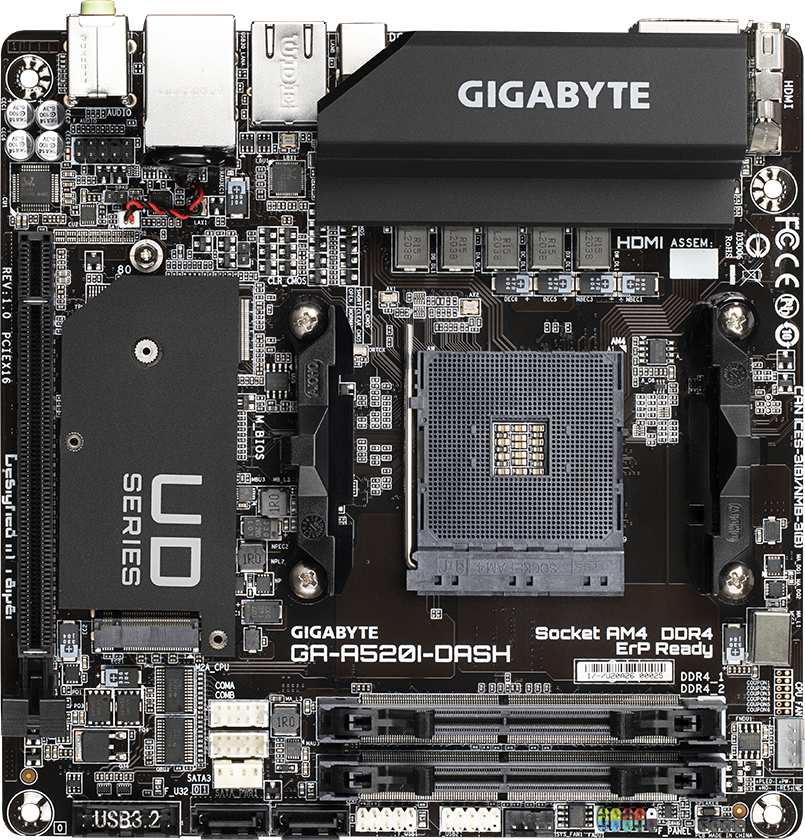

GA-A520I-DASH (Rev. 1.0)

{
  "cpu": "AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors (Please refer \"CPU Support List\" for more information.)",
  "tpm": "Infineon chip, supporting TPM 2.0",
  "usb": "CPU: 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers",
  "bios": "1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0",
  "memory": "2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer \"Memory Support List\" for more information.)",
  "remark": "Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.",
  "storage": "CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 2 x SATA 6Gb/s connectors Support for RAID 0 and RAID 1",
  "dimensions": "17.0cm x 17.0cm",
  "h/w_monitoring": "Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.",
  "i/o_controller": "iTE® I/O Controller Chip",
  "expansion_slots": "Integrated in the CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16",
  "unique_features": "Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Support for Q-Flash Support for Xpress Install",
  "bundled_software": "Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility",
  "onboard_graphics": "Integrated in AMD Ryzen™ 5000 G-Series and 4000 G-Series processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. 2 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB",
  "operating_system": "Support for Windows 11 64-bit Support for Windows 10 64-bit",
  "back_panel_connectors": "1 x HDMI port 2 x DisplayPorts 1 x DC In Power Connector 2 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks",
  "internal_i/o_connectors": "1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x SATA power connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x serial port headers 2 x speaker header (SPKR/SPEAKER) 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W."
}
