asus

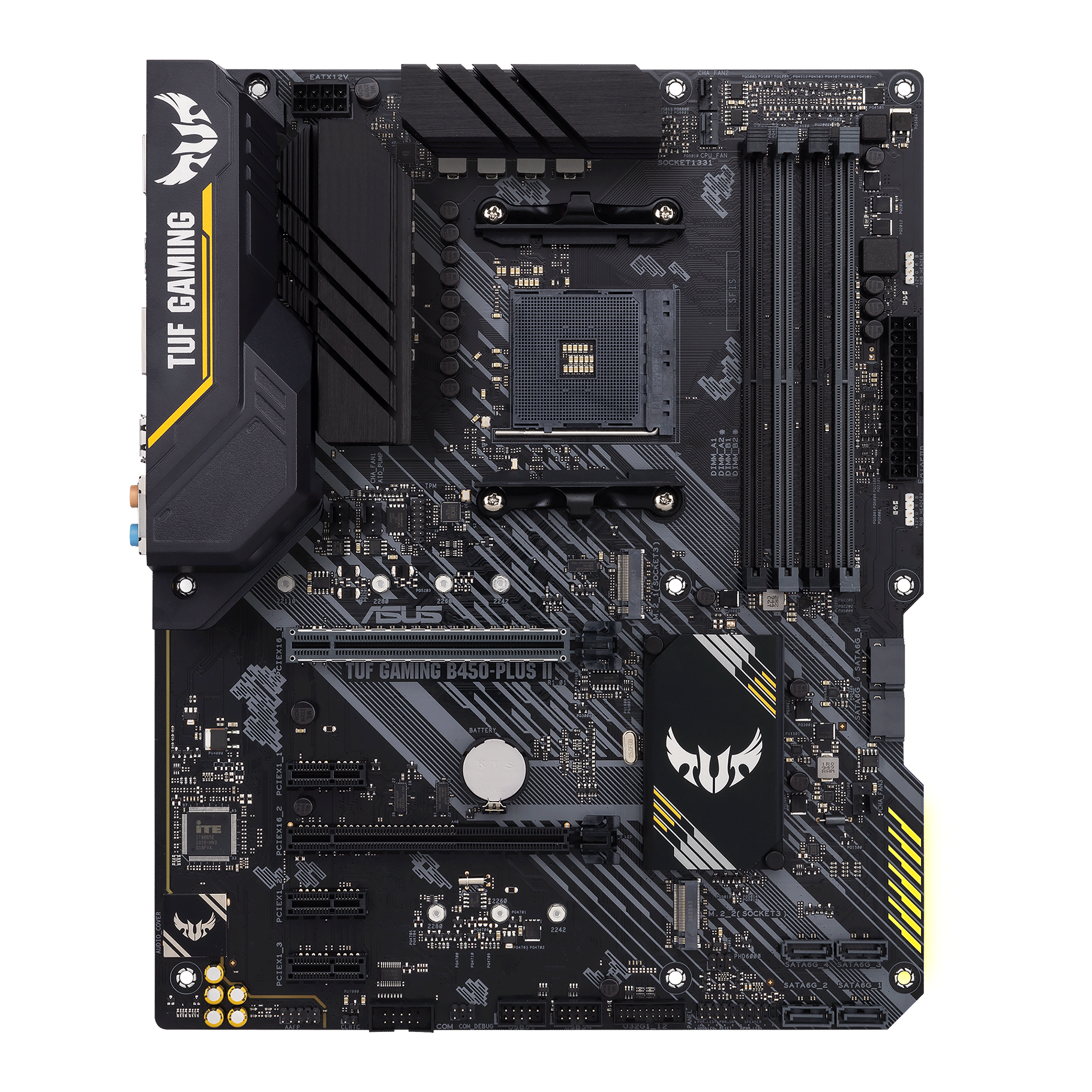

TUF GAMING B450-PLUS II

vendor page ↗ · scraped 2h ago

Vendor: asus
Socket: —
Chipset: B450
Form factor: ATX
RAM type: —
RAM slots: —
RAM max (GB): —
Audio codec: —
Wi-Fi: No
Bluetooth: No
SATA ports: 6
USB Type-C: —
USB Type-A: —

Full specifications (12 fields)

{
  "CPU": "AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors",
  "USB": "Rear USB:Total 8 ports, Front USB:Total 6 ports",
  "Memory": "Memory Channels:4DDR4 (Dual channel), Max Memory Size:128GB",
  "Chipset": "B450",
  "Storage": "Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports",
  "Ethernet": "1 x Realtek 1Gb Ethernet",
  "Graphics": "1 x DisplayPort 1.2, Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI™ port** *Graphics specifications may vary between CPU types.",
  "Form Factor": "ATX, 30.5cm x 24.4cm",
  "Expansion Slots": "1 x PCIe 3.0 x16 + 1 x PCIe 2.0 x16 (max. x4)",
  "Operating System": "Win10 64bit/Win7 64bit",
  "Special Features": "Y",
  "Wireless & Bluetooth": "N"
}
