gigabyte

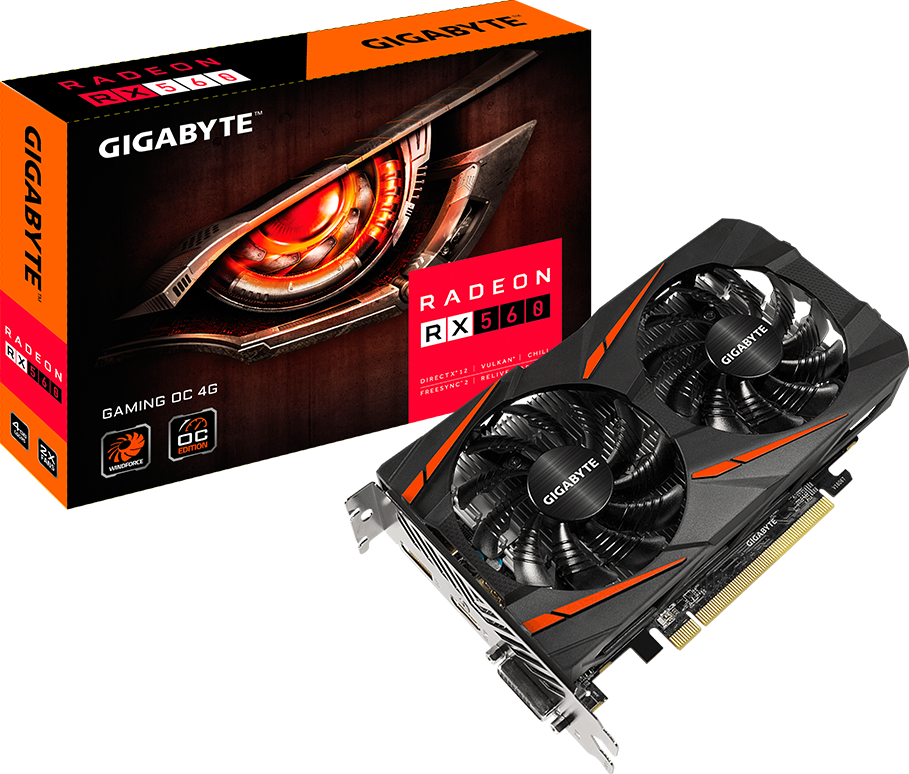

Radeon RX 560 Gaming OC 4G (Rev. 2.0)

vendor page ↗ · scraped 8h ago

Vendor: gigabyte
GPU chip: Radeon RX560
CUDA cores: —
Core clock (MHz): 1234
Memory size (GB): 4
Memory type: GDDR5
Memory bus (bits): 128
Card bus: PCI-E 3.0 x 8
Length (mm): 190
Recommended PSU (W): 400
Power connectors: —
HDMI: 1
DisplayPort: 1

Full specifications (17 fields)

{
  "opengl": "4.5",
  "output": "Dual-link DVI-D *1 HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz)",
  "directx": "12",
  "card_bus": "PCI-E 3.0 x 8",
  "pcb_form": "ATX",
  "card_size": "H=37 L=190 W=111 mm",
  "core_clock": "OC mode: up to 1234 MHz Gaming mode: up to 1224 MHz (Reference card: 1176 MHz)",
  "memory_bus": "128 bit",
  "multi-view": "3",
  "memory_size": "4 GB",
  "memory_type": "GDDR5",
  "memory_clock": "7000 MHz",
  "recommended_psu": "400W",
  "stream_processors": "1024(16CU)",
  "process_technology": "14 nm",
  "graphics_processing": "Radeon RX560",
  "digital_max_resolution": "7680x4320"
}
