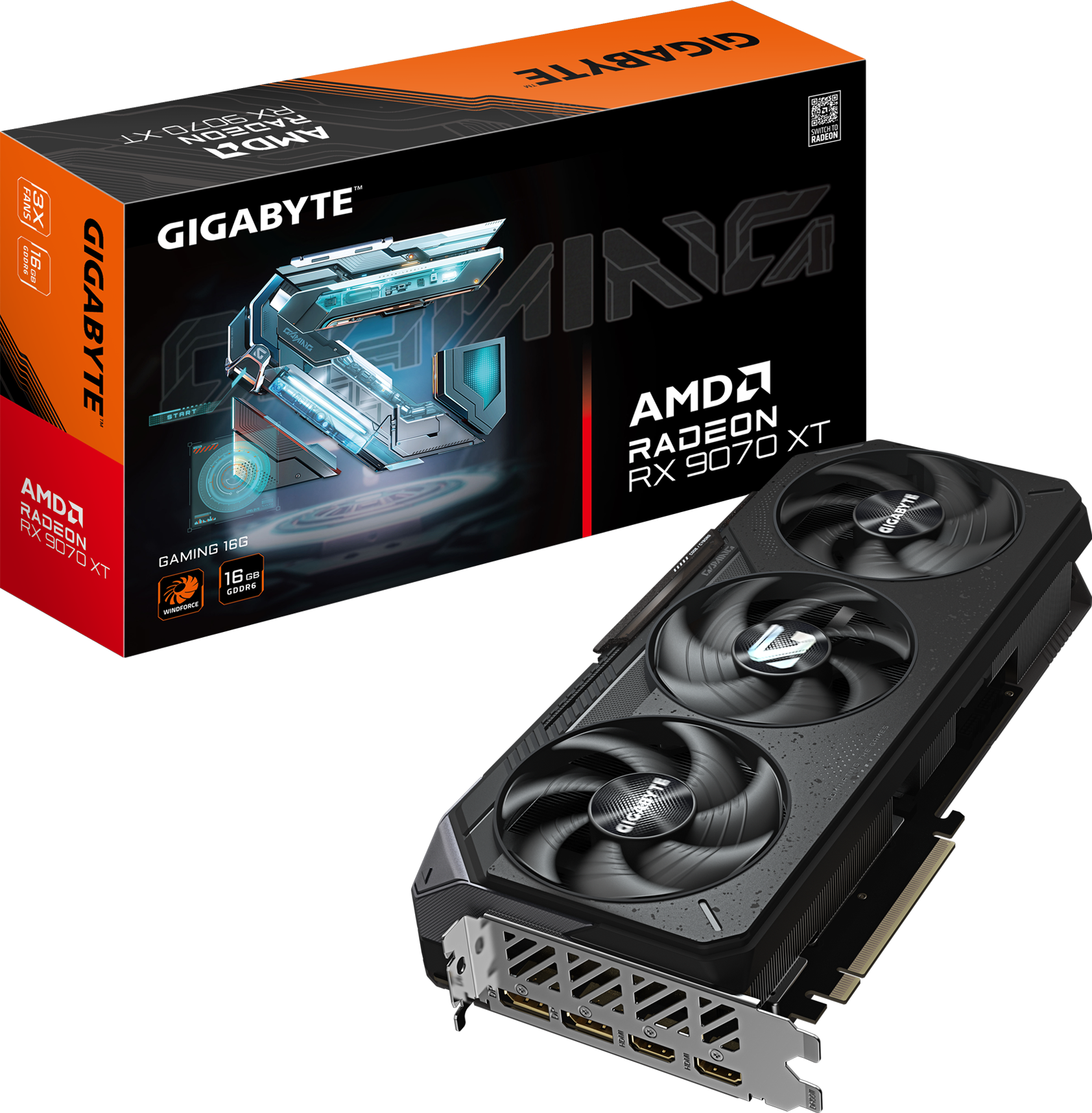

Radeon RX 9070 XT GAMING 16G
gigabyte

Radeon RX 9070 XT GAMING 16G

vendor page ↗ · scraped 2h ago

Vendor
gigabyte
GPU chip
Radeon RX 9070 XT
CUDA cores
Core clock (MHz)
2970
Memory size (GB)
16
Memory type
GDDR6
Memory bus (bits)
256
Card bus
PCI-E 5.0
Length (mm)
288
Recommended PSU (W)
850
Power connectors
8 pin*3
HDMI
2
DisplayPort
2
Full specifications (19 fields)
{
  "note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147",
  "opengl": "4.6",
  "output": "DisplayPort 2.1a *2 HDMI 2.1b *2",
  "directx": "DirectX 12 API",
  "card_bus": "PCI-E 5.0",
  "pcb_form": "ATX",
  "card_size": "L=288 W=132 H=56 mm",
  "core_clock": "Boost Clock* : up to 2970 MHz Game Clock* : up to 2400 MHz",
  "memory_bus": "256 bit",
  "multi-view": "4",
  "accessories": "Quick guide",
  "memory_size": "16GB",
  "memory_type": "GDDR6",
  "memory_clock": "20 Gbps",
  "recommended_psu": "850W",
  "power_connectors": "8 pin*3",
  "stream_processors": "4096",
  "graphics_processing": "Radeon RX 9070 XT",
  "digital_max_resolution": "7680x4320"
}
