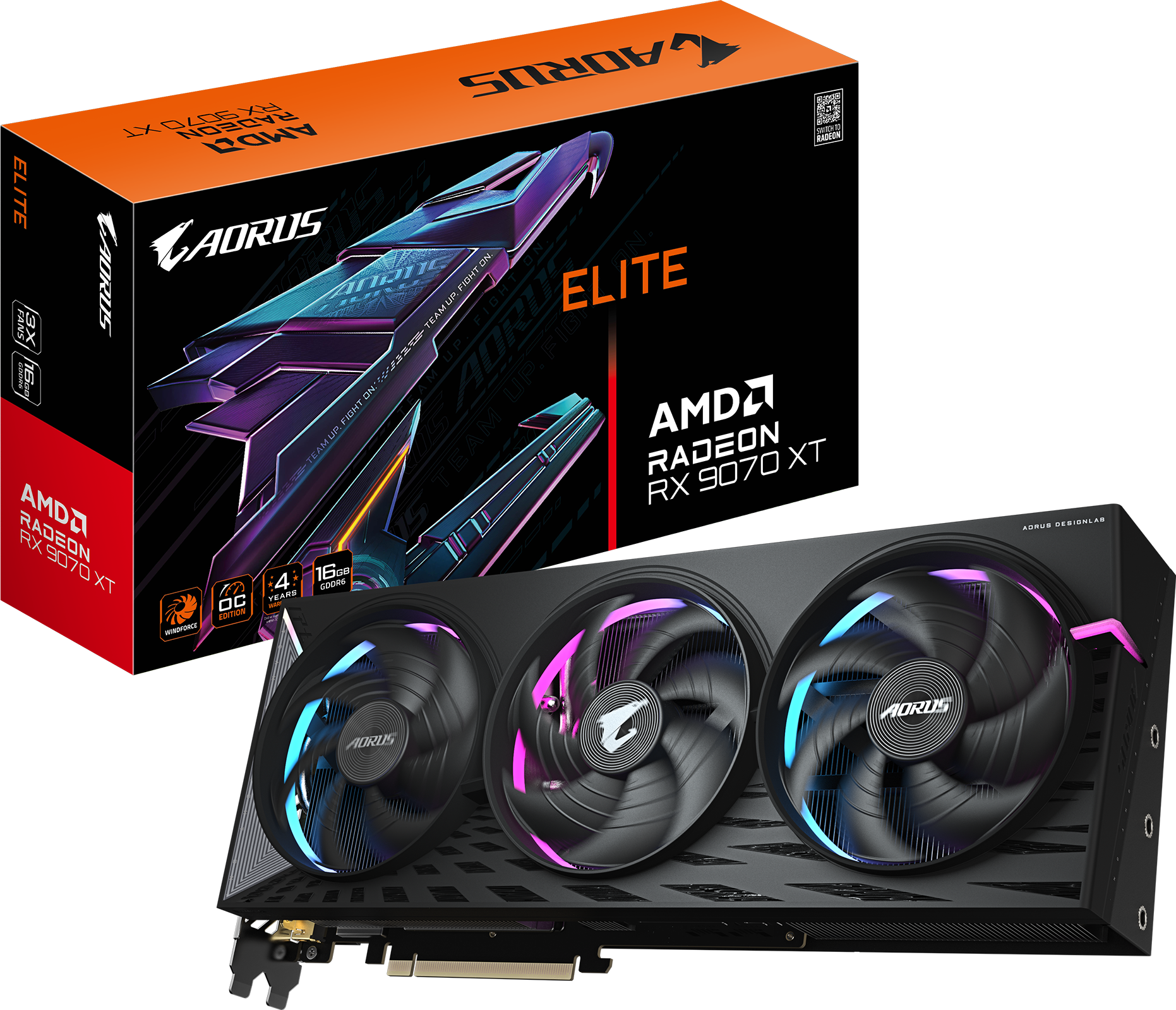

AORUS Radeon RX 9070 XT ELITE 16G
gigabyte

AORUS Radeon RX 9070 XT ELITE 16G

vendor page ↗ · scraped 2h ago

Vendor
gigabyte
GPU chip
Radeon RX 9070 XT
CUDA cores
Core clock (MHz)
3100
Memory size (GB)
16
Memory type
GDDR6
Memory bus (bits)
256
Card bus
PCI-E 5.0
Length (mm)
339
Recommended PSU (W)
850
Power connectors
8 pin*3
HDMI
2
DisplayPort
2
Full specifications (19 fields)
{
  "note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147",
  "opengl": "4.6",
  "output": "DisplayPort 2.1a *2 HDMI 2.1b *2",
  "directx": "DirectX 12 API",
  "card_bus": "PCI-E 5.0",
  "pcb_form": "ATX",
  "card_size": "L=339 W=136 H=59 mm",
  "core_clock": "Boost Clock* : up to 3100 MHz (Reference card: 2970 MHz) Game Clock* : up to 2570 MHz (Reference card: 2400 MHz)",
  "memory_bus": "256 bit",
  "multi-view": "4",
  "accessories": "1. Quick guide 2. Warranty registration 3. AORUS metal sticker 4. Versatile VGA holder 5. Versatile VGA holder manual",
  "memory_size": "16GB",
  "memory_type": "GDDR6",
  "memory_clock": "20 Gbps",
  "recommended_psu": "850W",
  "power_connectors": "8 pin*3",
  "stream_processors": "4096",
  "graphics_processing": "Radeon RX 9070 XT",
  "digital_max_resolution": "7680x4320"
}
