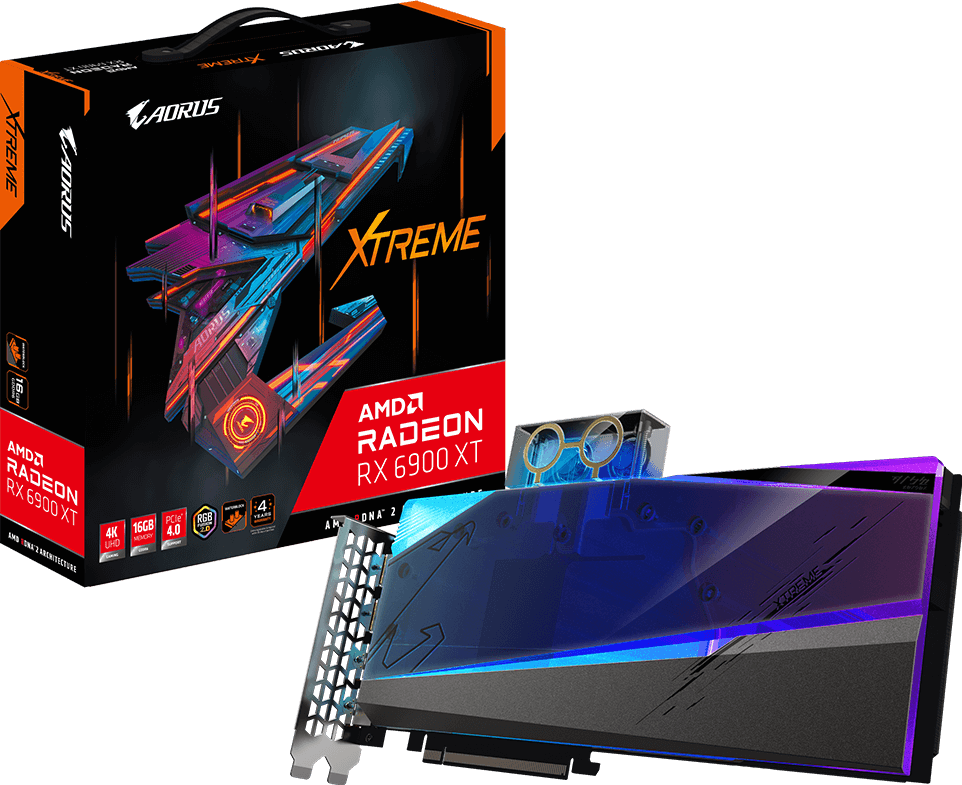

AORUS Radeon RX 6900 XT XTREME WATERFORCE WB 16G
gigabyte

AORUS Radeon RX 6900 XT XTREME WATERFORCE WB 16G

vendor page ↗ · scraped 8h ago

Vendor
gigabyte
GPU chip
Radeon RX 6900 XT
CUDA cores
Core clock (MHz)
2525
Memory size (GB)
16
Memory type
GDDR6
Memory bus (bits)
256
Card bus
PCI-E 4.0 x 16
Length (mm)
282
Recommended PSU (W)
900
Power connectors
8 pin*3
HDMI
2
DisplayPort
2
Full specifications (22 fields)
{
  "note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.",
  "opengl": "4.6",
  "output": "DisplayPort 1.4a *2 HDMI 2.1 *2",
  "directx": "12 Ultimate",
  "card_bus": "PCI-E 4.0 x 16",
  "pcb_form": "ATX",
  "card_size": "L=282 W=146 H=28 mm",
  "core_clock": "Boost Clock* : up to 2525 MHz (Reference card: 2435 MHz) Game Clock* : up to 2375 MHz (Reference card: 2250 MHz)",
  "memory_bus": "256 bit",
  "multi-view": "4",
  "accessories": "1. Quick guide 2. Warranty registration 3. Metal sticker 4. Xtreme robot limited edition 5. Water Block installation 6. Thermal grease",
  "memory_size": "16 GB",
  "memory_type": "GDDR6",
  "fitting_type": "G1/4\"",
  "memory_clock": "16000 MHz",
  "recommended_psu": "900W",
  "power_connectors": "8 pin*3",
  "stream_processors": "5120",
  "process_technology": "7 nm",
  "graphics_processing": "Radeon RX 6900 XT",
  "digital_max_resolution": "7680x4320",
  "memory_bandwidth_(gb/sec)": "512 GB/s"
}
