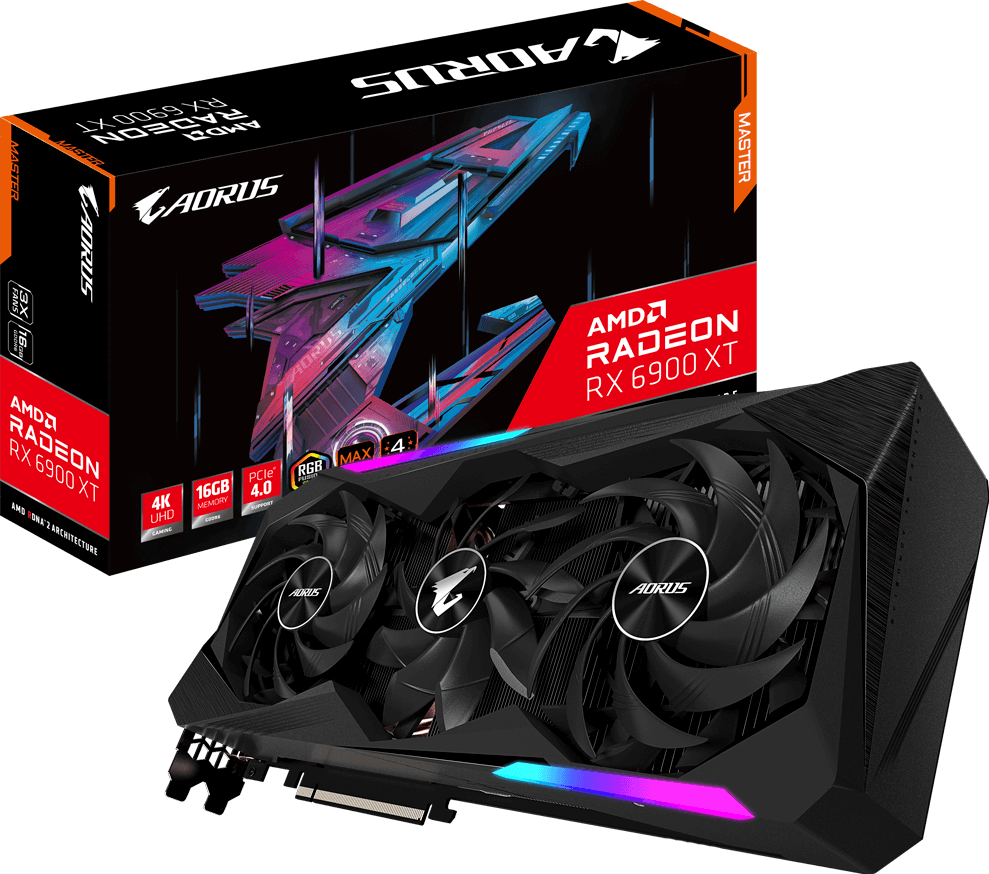

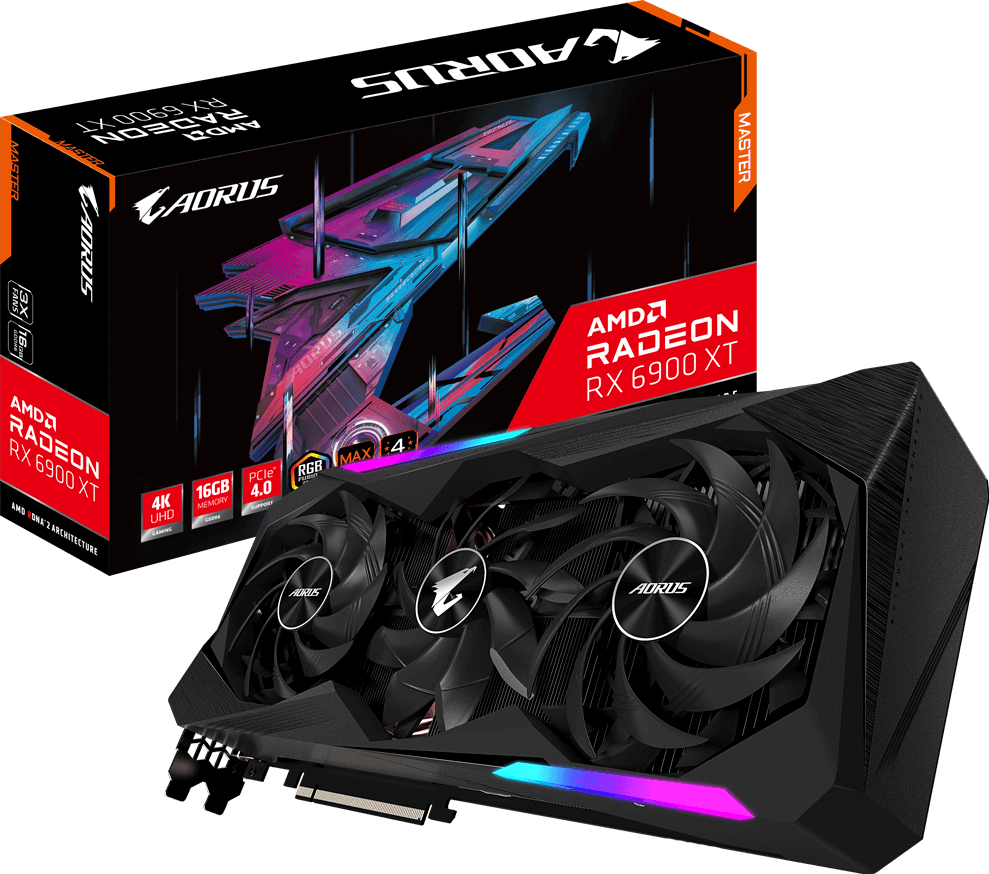

AORUS Radeon RX 6900 XT MASTER 16G (Rev. 2.0)
gigabyte

AORUS Radeon RX 6900 XT MASTER 16G (Rev. 2.0)

vendor page ↗ · scraped 8h ago

Vendor
gigabyte
GPU chip
Radeon RX 6900 XT
CUDA cores
Core clock (MHz)
2335
Memory size (GB)
16
Memory type
GDDR6
Memory bus (bits)
256
Card bus
PCI-E 4.0 x 16
Length (mm)
322
Recommended PSU (W)
850
Power connectors
8 pin*3
HDMI
2
DisplayPort
2
Full specifications (21 fields)
{
  "note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.",
  "opengl": "4.6",
  "output": "DisplayPort 1.4a *2 HDMI 2.1 *2",
  "directx": "12 Ultimate",
  "card_bus": "PCI-E 4.0 x 16",
  "pcb_form": "ATX",
  "card_size": "L=322 W=140 H=60 mm",
  "core_clock": "Boost Clock* : up to 2335 MHz Game Clock* : up to 2135 MHz",
  "memory_bus": "256 bit",
  "multi-view": "4",
  "accessories": "1. Quick guide 2. 4-year warranty registration 3. Metal sticker",
  "memory_size": "16 GB",
  "memory_type": "GDDR6",
  "memory_clock": "16000 MHz",
  "recommended_psu": "850W",
  "power_connectors": "8 pin*3",
  "stream_processors": "5120",
  "process_technology": "7 nm",
  "graphics_processing": "Radeon RX 6900 XT",
  "digital_max_resolution": "7680x4320",
  "memory_bandwidth_(gb/sec)": "512 GB/s"
}
