gigabyte

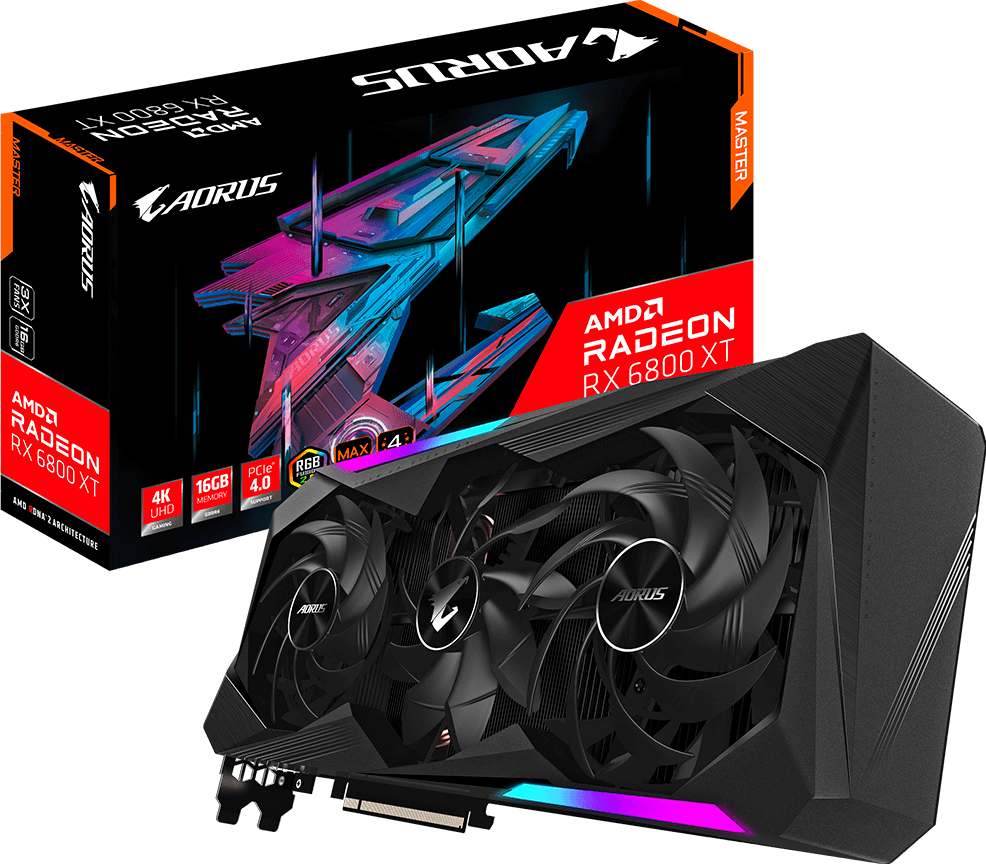

AORUS Radeon RX 6800 XT MASTER 16G
vendor page ↗ · scraped 8h ago
- Vendor
- gigabyte
- GPU chip
- Radeon RX 6800 XT
- CUDA cores
- —
- Core clock (MHz)
- 2310
- Memory size (GB)
- 16
- Memory type
- GDDR6
- Memory bus (bits)
- 256
- Card bus
- PCI-E 4.0 x 16
- Length (mm)
- 324
- Recommended PSU (W)
- 750
- Power connectors
- 8 pin*2
- HDMI
- 2
- DisplayPort
- 2
Full specifications (21 fields)
{
"note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.",
"opengl": "4.6",
"output": "DisplayPort 1.4a *2 HDMI 2.1 *2",
"directx": "12 Ultimate",
"card_bus": "PCI-E 4.0 x 16",
"pcb_form": "ATX",
"card_size": "L=324 W=140 H=60 mm",
"core_clock": "Boost Clock* : up to 2310 MHz (Reference card: 2250 MHz) Game Clock* : up to 2065 MHz (Reference card: 2015 MHz)",
"memory_bus": "256 bit",
"multi-view": "4",
"accessories": "1. Quick guide 2. 4-year warranty registration 3. Metal sticker",
"memory_size": "16 GB",
"memory_type": "GDDR6",
"memory_clock": "16000 MHz",
"recommended_psu": "750W",
"power_connectors": "8 pin*2",
"stream_processors": "4608",
"process_technology": "7 nm",
"graphics_processing": "Radeon RX 6800 XT",
"digital_max_resolution": "7680x4320",
"memory_bandwidth_(gb/sec)": "512 GB/s"
}
