gigabyte

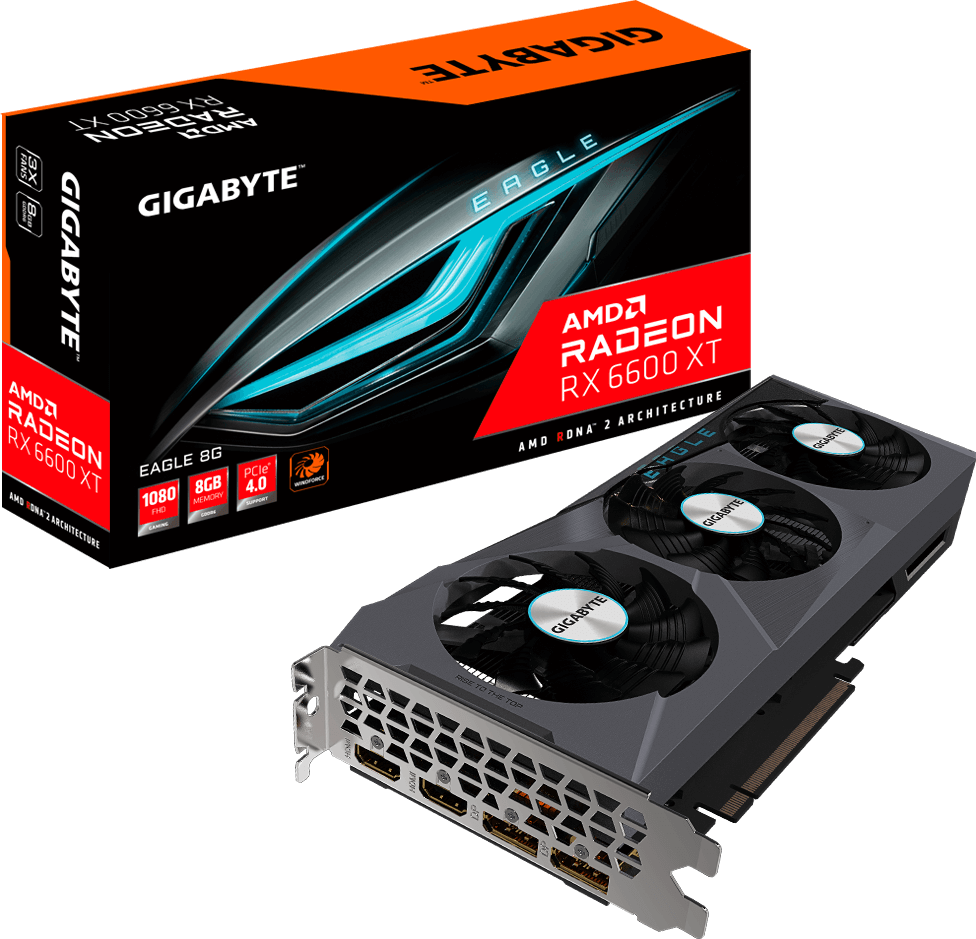

Radeon RX 6600 XT EAGLE 8G
vendor page ↗ · scraped 8h ago
- Vendor
- gigabyte
- GPU chip
- Radeon RX 6600 XT
- CUDA cores
- —
- Core clock (MHz)
- 2589
- Memory size (GB)
- 8
- Memory type
- GDDR6
- Memory bus (bits)
- 128
- Card bus
- PCI-E 4.0 x 8
- Length (mm)
- 282
- Recommended PSU (W)
- 500
- Power connectors
- 8 pin*1
- HDMI
- 2
- DisplayPort
- 2
Full specifications (20 fields)
{
"note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.",
"opengl": "4.6",
"output": "DisplayPort 1.4a *2 HDMI 2.1 *2",
"directx": "12 Ultimate",
"card_bus": "PCI-E 4.0 x 8",
"pcb_form": "ATX",
"card_size": "L=282 W=113 H=41 mm",
"core_clock": "Boost Clock* : up to 2589 MHz Game Clock* : up to 2359 MHz",
"memory_bus": "128 bit",
"multi-view": "4",
"accessories": "Quick guide",
"memory_size": "8 GB",
"memory_type": "GDDR6",
"memory_clock": "16000 MHz",
"recommended_psu": "500W",
"power_connectors": "8 pin*1",
"stream_processors": "2048",
"graphics_processing": "Radeon RX 6600 XT",
"digital_max_resolution": "7680x4320",
"memory_bandwidth_(gb/sec)": "256 GB/s"
}
