gigabyte

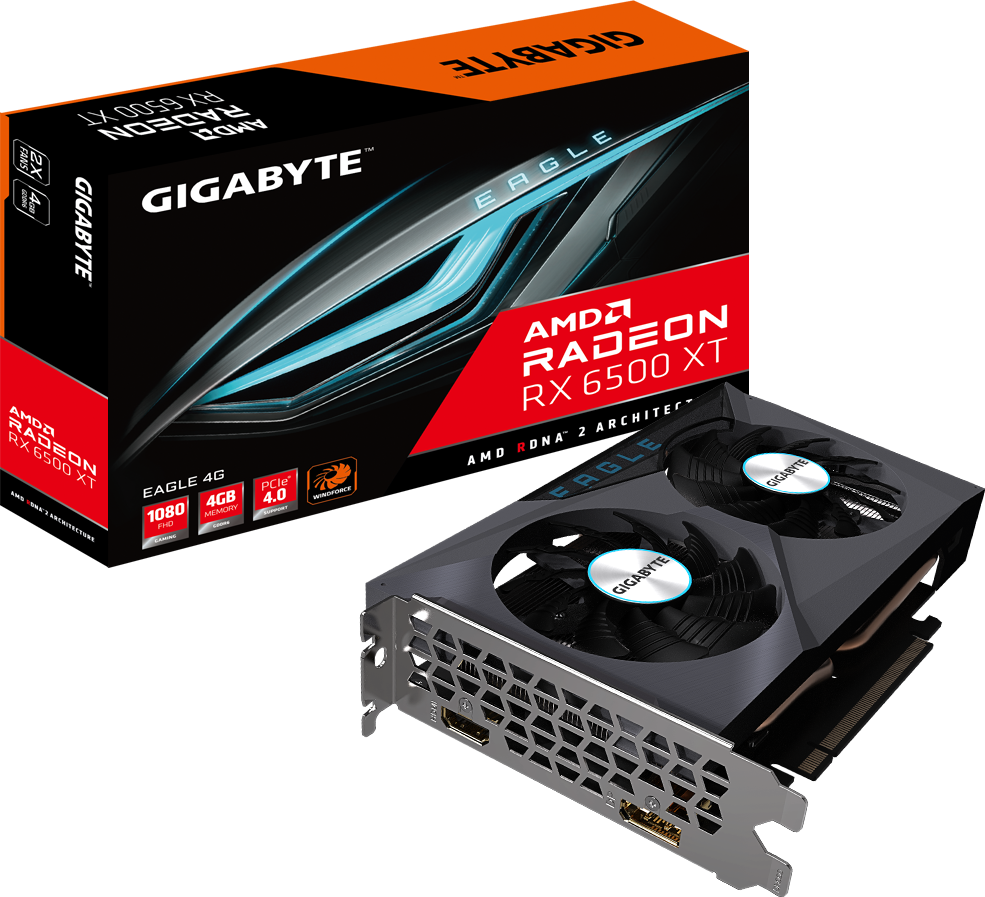

Radeon RX 6500 XT EAGLE 4G
vendor page ↗ · scraped 8h ago
- Vendor
- gigabyte
- GPU chip
- Radeon RX 6500 XT
- CUDA cores
- —
- Core clock (MHz)
- 2815
- Memory size (GB)
- 4
- Memory type
- GDDR6
- Memory bus (bits)
- 64
- Card bus
- PCI-E 4.0
- Length (mm)
- 192
- Recommended PSU (W)
- 400
- Power connectors
- 6 pin*1
- HDMI
- 1
- DisplayPort
- 1
Full specifications (21 fields)
{
"note": "* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.",
"opengl": "4.6",
"output": "DisplayPort 1.4a *1 HDMI 2.1 *1",
"directx": "12 Ultimate",
"card_bus": "PCI-E 4.0",
"pcb_form": "ATX",
"card_size": "L=192 W=117 H=38 mm",
"core_clock": "Boost Clock* : up to 2815 MHz Game Clock* : up to 2610 MHz",
"memory_bus": "64 bit",
"multi-view": "2",
"accessories": "Quick guide",
"memory_size": "4 GB",
"memory_type": "GDDR6",
"memory_clock": "18000 MHz",
"recommended_psu": "400W",
"power_connectors": "6 pin*1",
"stream_processors": "1024",
"process_technology": "6 nm",
"graphics_processing": "Radeon RX 6500 XT",
"digital_max_resolution": "7680x4320",
"memory_bandwidth_(gb/sec)": "144 GB/s"
}
